Amazon EKS绑定alb 使用aws-load-balancer-controller(Ingress Controller)对外提供服务
创始人
2024-01-21 04:23:59
0次

1、创建AWS Load Balancer Controller 的 IAM 策略
亚马逊相关文档

下载地址
打开 策略 点击 创建策略 打开 IAM_Policy.json 复制内容粘贴到 json
在这里插入图片描述
点击下一步:标签
然后一直下一步 在下图中名称填写 AWSLoadBalancerControllerIAMPolicy 你也可以自定义名称。然后创建策略。
在这里插入图片描述
至此，策略创建成功
在这里插入图片描述
json文本内容如下

{"Version": "2012-10-17","Statement": [{"Effect": "Allow","Action": ["iam:CreateServiceLinkedRole","ec2:DescribeAccountAttributes","ec2:DescribeAddresses","ec2:DescribeAvailabilityZones","ec2:DescribeInternetGateways","ec2:DescribeVpcs","ec2:DescribeSubnets","ec2:DescribeSecurityGroups","ec2:DescribeInstances","ec2:DescribeNetworkInterfaces","ec2:DescribeTags","ec2:GetCoipPoolUsage","ec2:DescribeCoipPools","elasticloadbalancing:DescribeLoadBalancers","elasticloadbalancing:DescribeLoadBalancerAttributes","elasticloadbalancing:DescribeListeners","elasticloadbalancing:DescribeListenerCertificates","elasticloadbalancing:DescribeSSLPolicies","elasticloadbalancing:DescribeRules","elasticloadbalancing:DescribeTargetGroups","elasticloadbalancing:DescribeTargetGroupAttributes","elasticloadbalancing:DescribeTargetHealth","elasticloadbalancing:DescribeTags"],"Resource": "*"},{"Effect": "Allow","Action": ["cognito-idp:DescribeUserPoolClient","acm:ListCertificates","acm:DescribeCertificate","iam:ListServerCertificates","iam:GetServerCertificate","waf-regional:GetWebACL","waf-regional:GetWebACLForResource","waf-regional:AssociateWebACL","waf-regional:DisassociateWebACL","wafv2:GetWebACL","wafv2:GetWebACLForResource","wafv2:AssociateWebACL","wafv2:DisassociateWebACL","shield:GetSubscriptionState","shield:DescribeProtection","shield:CreateProtection","shield:DeleteProtection"],"Resource": "*"},{"Effect": "Allow","Action": ["ec2:AuthorizeSecurityGroupIngress","ec2:RevokeSecurityGroupIngress"],"Resource": "*"},{"Effect": "Allow","Action": ["ec2:CreateSecurityGroup"],"Resource": "*"},{"Effect": "Allow","Action": ["ec2:CreateTags"],"Resource": "arn:aws-cn:ec2:*:*:security-group/*","Condition": {"StringEquals": {"ec2:CreateAction": "CreateSecurityGroup"},"Null": {"aws:RequestTag/elbv2.k8s.aws/cluster": "false"}}},{"Effect": "Allow","Action": ["ec2:CreateTags","ec2:DeleteTags"],"Resource": "arn:aws-cn:ec2:*:*:security-group/*","Condition": {"Null": {"aws:RequestTag/elbv2.k8s.aws/cluster": "true","aws:ResourceTag/elbv2.k8s.aws/cluster": "false"}}},{"Effect": "Allow","Action": ["ec2:AuthorizeSecurityGroupIngress","ec2:RevokeSecurityGroupIngress","ec2:DeleteSecurityGroup"],"Resource": "*","Condition": {"Null": {"aws:ResourceTag/elbv2.k8s.aws/cluster": "false"}}},{"Effect": "Allow","Action": ["elasticloadbalancing:CreateLoadBalancer","elasticloadbalancing:CreateTargetGroup"],"Resource": "*","Condition": {"Null": {"aws:RequestTag/elbv2.k8s.aws/cluster": "false"}}},{"Effect": "Allow","Action": ["elasticloadbalancing:CreateListener","elasticloadbalancing:DeleteListener","elasticloadbalancing:CreateRule","elasticloadbalancing:DeleteRule"],"Resource": "*"},{"Effect": "Allow","Action": ["elasticloadbalancing:AddTags","elasticloadbalancing:RemoveTags"],"Resource": ["arn:aws-cn:elasticloadbalancing:*:*:targetgroup/*/*","arn:aws-cn:elasticloadbalancing:*:*:loadbalancer/net/*/*","arn:aws-cn:elasticloadbalancing:*:*:loadbalancer/app/*/*"],"Condition": {"Null": {"aws:RequestTag/elbv2.k8s.aws/cluster": "true","aws:ResourceTag/elbv2.k8s.aws/cluster": "false"}}},{"Effect": "Allow","Action": ["elasticloadbalancing:AddTags","elasticloadbalancing:RemoveTags"],"Resource": ["arn:aws-cn:elasticloadbalancing:*:*:listener/net/*/*/*","arn:aws-cn:elasticloadbalancing:*:*:listener/app/*/*/*","arn:aws-cn:elasticloadbalancing:*:*:listener-rule/net/*/*/*","arn:aws-cn:elasticloadbalancing:*:*:listener-rule/app/*/*/*"]},{"Effect": "Allow","Action": ["elasticloadbalancing:ModifyLoadBalancerAttributes","elasticloadbalancing:SetIpAddressType","elasticloadbalancing:SetSecurityGroups","elasticloadbalancing:SetSubnets","elasticloadbalancing:DeleteLoadBalancer","elasticloadbalancing:ModifyTargetGroup","elasticloadbalancing:ModifyTargetGroupAttributes","elasticloadbalancing:DeleteTargetGroup"],"Resource": "*","Condition": {"Null": {"aws:ResourceTag/elbv2.k8s.aws/cluster": "false"}}},{"Effect": "Allow","Action": ["elasticloadbalancing:RegisterTargets","elasticloadbalancing:DeregisterTargets"],"Resource": "arn:aws-cn:elasticloadbalancing:*:*:targetgroup/*/*"},{"Effect": "Allow","Action": ["elasticloadbalancing:SetWebAcl","elasticloadbalancing:ModifyListener","elasticloadbalancing:AddListenerCertificates","elasticloadbalancing:RemoveListenerCertificates","elasticloadbalancing:ModifyRule"],"Resource": "*"}]
}

2、赋予 EKS node 权限
在 角色 中搜索 AmazonEKSNodeRole 找到你对应的 EKS 集群 如下图
在这里插入图片描述

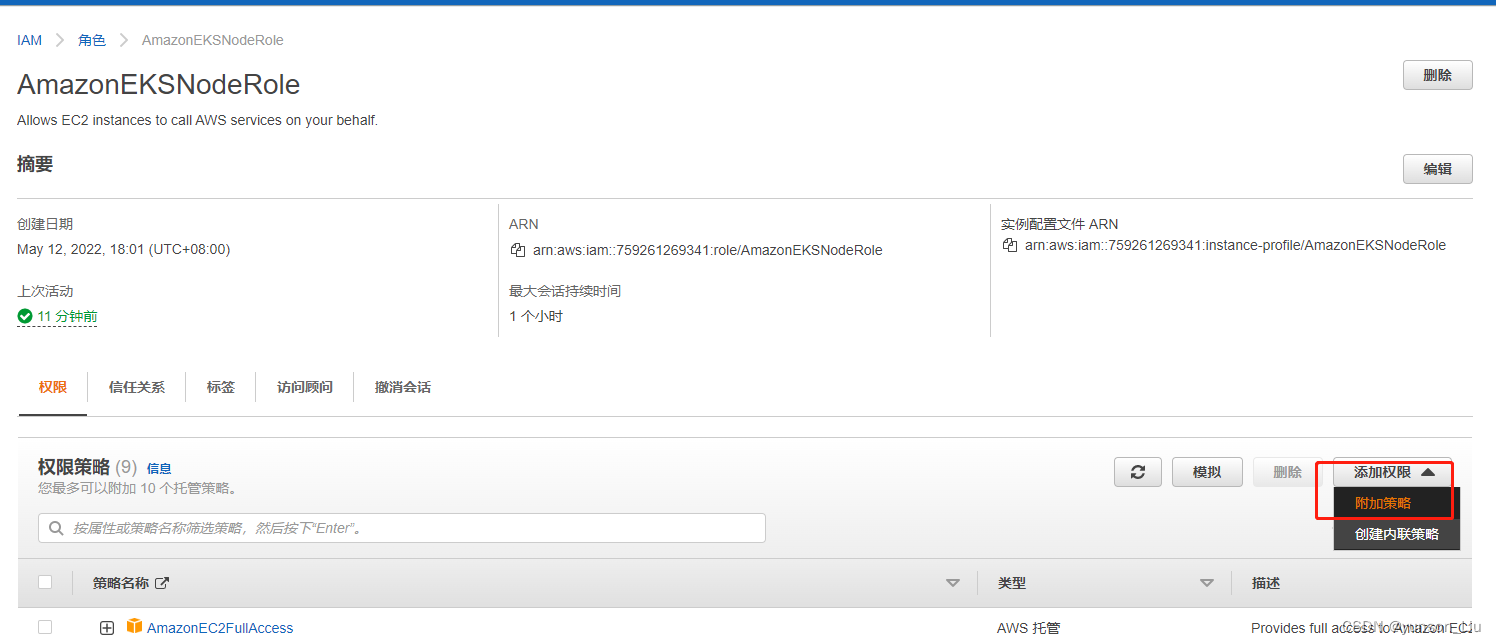

然后点击该角色-- 点击附加策略
在这里插入图片描述
在搜索框内 输入刚才创建的策略名称 然后选中，点击最下边的附加策略。

我的策略名称为：AWSLoadBalancerControllerIAMPolicy
在这里插入图片描述
3、在 EKS 中安装 AWS Load Balancer Controller
安装证书管理器

[root@ip-172-93-6-200 ~]# kubectl apply --validate=false -f https://github.com/jetstack/cert-manager/releases/download/v1.5.3/cert-manager.yaml
customresourcedefinition.apiextensions.k8s.io/certificaterequests.cert-manager.io created
customresourcedefinition.apiextensions.k8s.io/certificates.cert-manager.io created
customresourcedefinition.apiextensions.k8s.io/challenges.acme.cert-manager.io created
customresourcedefinition.apiextensions.k8s.io/clusterissuers.cert-manager.io created
customresourcedefinition.apiextensions.k8s.io/issuers.cert-manager.io created
customresourcedefinition.apiextensions.k8s.io/orders.acme.cert-manager.io created
namespace/cert-manager created
serviceaccount/cert-manager-cainjector created
serviceaccount/cert-manager created
serviceaccount/cert-manager-webhook created
clusterrole.rbac.authorization.k8s.io/cert-manager-cainjector created
clusterrole.rbac.authorization.k8s.io/cert-manager-controller-issuers created
clusterrole.rbac.authorization.k8s.io/cert-manager-controller-clusterissuers created
clusterrole.rbac.authorization.k8s.io/cert-manager-controller-certificates created
clusterrole.rbac.authorization.k8s.io/cert-manager-controller-orders created
clusterrole.rbac.authorization.k8s.io/cert-manager-controller-challenges created
clusterrole.rbac.authorization.k8s.io/cert-manager-controller-ingress-shim created
clusterrole.rbac.authorization.k8s.io/cert-manager-view created
clusterrole.rbac.authorization.k8s.io/cert-manager-edit created
clusterrole.rbac.authorization.k8s.io/cert-manager-controller-approve:cert-manager-io created
clusterrole.rbac.authorization.k8s.io/cert-manager-controller-certificatesigningrequests created
clusterrole.rbac.authorization.k8s.io/cert-manager-webhook:subjectaccessreviews created
clusterrolebinding.rbac.authorization.k8s.io/cert-manager-cainjector created
clusterrolebinding.rbac.authorization.k8s.io/cert-manager-controller-issuers created
clusterrolebinding.rbac.authorization.k8s.io/cert-manager-controller-clusterissuers created
clusterrolebinding.rbac.authorization.k8s.io/cert-manager-controller-certificates created
clusterrolebinding.rbac.authorization.k8s.io/cert-manager-controller-orders created
clusterrolebinding.rbac.authorization.k8s.io/cert-manager-controller-challenges created
clusterrolebinding.rbac.authorization.k8s.io/cert-manager-controller-ingress-shim created
clusterrolebinding.rbac.authorization.k8s.io/cert-manager-controller-approve:cert-manager-io created
clusterrolebinding.rbac.authorization.k8s.io/cert-manager-controller-certificatesigningrequests created
clusterrolebinding.rbac.authorization.k8s.io/cert-manager-webhook:subjectaccessreviews created
role.rbac.authorization.k8s.io/cert-manager-cainjector:leaderelection created
role.rbac.authorization.k8s.io/cert-manager:leaderelection created
role.rbac.authorization.k8s.io/cert-manager-webhook:dynamic-serving created
rolebinding.rbac.authorization.k8s.io/cert-manager-cainjector:leaderelection created
rolebinding.rbac.authorization.k8s.io/cert-manager:leaderelection created
rolebinding.rbac.authorization.k8s.io/cert-manager-webhook:dynamic-serving created
service/cert-manager created
service/cert-manager-webhook created
deployment.apps/cert-manager-cainjector created
deployment.apps/cert-manager created
deployment.apps/cert-manager-webhook created
mutatingwebhookconfiguration.admissionregistration.k8s.io/cert-manager-webhook created
validatingwebhookconfiguration.admissionregistration.k8s.io/cert-manager-webhook created

4、部署 YAML
下载负载平衡器控制器的规范。

[root@ip-172-93-6-200 ~]# cd /etc/gamefi/
[root@ip-172-93-6-200 gamefi]# ls
business-client.yaml  system.yaml
[root@ip-172-93-6-200 gamefi]# wget https://github.com/kubernetes-sigs/aws-load-balancer-controller/releases/download/v2.3.1/v2_3_1_full.yaml
--2022-11-14 10:24:00--  https://github.com/kubernetes-sigs/aws-load-balancer-controller/releases/download/v2.3.1/v2_3_1_full.yaml
Resolving github.com (github.com)... 20.205.243.166
Connecting to github.com (github.com)|20.205.243.166|:443... connected.
HTTP request sent, awaiting response... 302 Found
Location: https://objects.githubusercontent.com/github-production-release-asset-2e65be/84610043/e1412997-05df-48e5-83e4-4a0e9edcc0c7?X-Amz-Algorithm=AWS4-HMAC-SHA256&X-Amz-Credential=AKIAIWNJYAX4CSVEH53A%2F20221114%2Fus-east-1%2Fs3%2Faws4_request&X-Amz-Date=20221114T022400Z&X-Amz-Expires=300&X-Amz-Signature=ba9ac04cf9cc0aba453ddf304598535308986187c8cf05b0a153462545efa857&X-Amz-SignedHeaders=host&actor_id=0&key_id=0&repo_id=84610043&response-content-disposition=attachment%3B%20filename%3Dv2_3_1_full.yaml&response-content-type=application%2Foctet-stream [following]
--2022-11-14 10:24:00--  https://objects.githubusercontent.com/github-production-release-asset-2e65be/84610043/e1412997-05df-48e5-83e4-4a0e9edcc0c7?X-Amz-Algorithm=AWS4-HMAC-SHA256&X-Amz-Credential=AKIAIWNJYAX4CSVEH53A%2F20221114%2Fus-east-1%2Fs3%2Faws4_request&X-Amz-Date=20221114T022400Z&X-Amz-Expires=300&X-Amz-Signature=ba9ac04cf9cc0aba453ddf304598535308986187c8cf05b0a153462545efa857&X-Amz-SignedHeaders=host&actor_id=0&key_id=0&repo_id=84610043&response-content-disposition=attachment%3B%20filename%3Dv2_3_1_full.yaml&response-content-type=application%2Foctet-stream
Resolving objects.githubusercontent.com (objects.githubusercontent.com)... 185.199.109.133, 185.199.110.133, 185.199.111.133, ...
Connecting to objects.githubusercontent.com (objects.githubusercontent.com)|185.199.109.133|:443... connected.
HTTP request sent, awaiting response... 200 OK
Length: 31767 (31K) [application/octet-stream]
Saving to: ‘v2_3_1_full.yaml’100%[==============================================================================================================================================================================================================>] 31,767      --.-K/s   in 0s      2022-11-14 10:24:01 (97.5 MB/s) - ‘v2_3_1_full.yaml’ saved [31767/31767]

5、编辑保存的 yaml 文件，转到部署规范，并将控制器 --cluster-name arg 值设置为您的 EKS 集群名称
在这里插入图片描述
如果您为服务账户使用 IAM 角色，我们建议您从 yaml 规范中删除 ServiceAccount。如果您从 yaml 规范中删除安装部分，这将保留 eksctl 创建的 iamserviceaccount。
在这里插入图片描述

[root@ip-172-93-6-200 gamefi]# vim v2_3_1_full.yaml
---
apiVersion: v1
kind: ServiceAccount
metadata:labels:app.kubernetes.io/component: controllerapp.kubernetes.io/name: aws-load-balancer-controllername: aws-load-balancer-controllernamespace: kube-system

应用 yaml 文件

[root@ip-172-93-6-200 gamefi]# kubectl apply -f v2_3_1_full.yaml
customresourcedefinition.apiextensions.k8s.io/ingressclassparams.elbv2.k8s.aws created
customresourcedefinition.apiextensions.k8s.io/targetgroupbindings.elbv2.k8s.aws created
role.rbac.authorization.k8s.io/aws-load-balancer-controller-leader-election-role created
clusterrole.rbac.authorization.k8s.io/aws-load-balancer-controller-role created
rolebinding.rbac.authorization.k8s.io/aws-load-balancer-controller-leader-election-rolebinding created
clusterrolebinding.rbac.authorization.k8s.io/aws-load-balancer-controller-rolebinding created
service/aws-load-balancer-webhook-service created
deployment.apps/aws-load-balancer-controller created
certificate.cert-manager.io/aws-load-balancer-serving-cert created
issuer.cert-manager.io/aws-load-balancer-selfsigned-issuer created
mutatingwebhookconfiguration.admissionregistration.k8s.io/aws-load-balancer-webhook created
validatingwebhookconfiguration.admissionregistration.k8s.io/aws-load-balancer-webhook created

6、部署示例应用程序
将游戏 2048 部署为示例应用程序，以确认作为入口对象的结果，Amazon负载均衡器控制器是否会创建 Amazon ALB。
出现报错
错误一：

[root@ip-172-93-6-200 gamefi]# kubectl logs --tail 100 aws-load-balancer-controller-957d4466-kj26d -n kube-system
{"level":"info","ts":1668394482.8632996,"msg":"version","GitVersion":"v2.3.1","GitCommit":"1d492cb8648b2053086761140d9db9236f867237","BuildDate":"2021-12-08T18:13:11+0000"}
{"level":"info","ts":1668394482.9612875,"logger":"controller-runtime.metrics","msg":"metrics server is starting to listen","addr":":8080"}
{"level":"error","ts":1668394482.964263,"logger":"setup","msg":"unable to create controller","controller":"Ingress","error":"the server could not find the requested resource"}

解决办法
换成更高的版本2.4.5

[root@ip-172-93-6-200 gamefi]# kubectl replace --force -f v2_4_5_full.yaml
customresourcedefinition.apiextensions.k8s.io "ingressclassparams.elbv2.k8s.aws" deleted
customresourcedefinition.apiextensions.k8s.io "targetgroupbindings.elbv2.k8s.aws" deleted
serviceaccount "aws-load-balancer-controller" deleted
role.rbac.authorization.k8s.io "aws-load-balancer-controller-leader-election-role" deleted
clusterrole.rbac.authorization.k8s.io "aws-load-balancer-controller-role" deleted
rolebinding.rbac.authorization.k8s.io "aws-load-balancer-controller-leader-election-rolebinding" deleted
clusterrolebinding.rbac.authorization.k8s.io "aws-load-balancer-controller-rolebinding" deleted
service "aws-load-balancer-webhook-service" deleted
deployment.apps "aws-load-balancer-controller" deleted
certificate.cert-manager.io "aws-load-balancer-serving-cert" deleted
issuer.cert-manager.io "aws-load-balancer-selfsigned-issuer" deleted
mutatingwebhookconfiguration.admissionregistration.k8s.io "aws-load-balancer-webhook" deleted
validatingwebhookconfiguration.admissionregistration.k8s.io "aws-load-balancer-webhook" deleted
ingressclass.networking.k8s.io "alb" deleted
customresourcedefinition.apiextensions.k8s.io/ingressclassparams.elbv2.k8s.aws replaced
customresourcedefinition.apiextensions.k8s.io/targetgroupbindings.elbv2.k8s.aws replaced
serviceaccount/aws-load-balancer-controller replaced
role.rbac.authorization.k8s.io/aws-load-balancer-controller-leader-election-role replaced
clusterrole.rbac.authorization.k8s.io/aws-load-balancer-controller-role replaced
rolebinding.rbac.authorization.k8s.io/aws-load-balancer-controller-leader-election-rolebinding replaced
clusterrolebinding.rbac.authorization.k8s.io/aws-load-balancer-controller-rolebinding replaced
service/aws-load-balancer-webhook-service replaced
deployment.apps/aws-load-balancer-controller replaced
certificate.cert-manager.io/aws-load-balancer-serving-cert replaced
issuer.cert-manager.io/aws-load-balancer-selfsigned-issuer replaced
mutatingwebhookconfiguration.admissionregistration.k8s.io/aws-load-balancer-webhook replaced
validatingwebhookconfiguration.admissionregistration.k8s.io/aws-load-balancer-webhook replaced
ingressclass.networking.k8s.io/alb replaced

错误二：

{"level":"info","ts":1668397162.7676105,"logger":"controller.service","msg":"Starting workers","worker count":3}
{"level":"info","ts":1668397162.7676473,"logger":"controller.targetGroupBinding","msg":"Starting workers","reconciler group":"elbv2.k8s.aws","reconciler kind":"TargetGroupBinding","worker count":3}
{"level":"info","ts":1668397162.7689776,"logger":"controller.ingress","msg":"Starting workers","worker count":3}
{"level":"error","ts":1668397163.0093007,"logger":"controller.ingress","msg":"Reconciler error","name":"ingress-2048","namespace":"default","error":"couldn't auto-discover subnets: unable to discover at least one subnet"}
{"level":"error","ts":1668397163.0816932,"logger":"controller.ingress","msg":"Reconciler error","name":"ingress-2048","namespace":"default","error":"couldn't auto-discover subnets: unable to discover at least one subnet"}
{"level":"error","ts":1668397163.1536942,"logger":"controller.ingress","msg":"Reconciler error","name":"ingress-2048","namespace":"default","error":"couldn't auto-discover subnets: unable to discover at least one subnet"}
{"level":"error","ts":1668397163.239786,"logger":"controller.ingress","msg":"Reconciler error","name":"ingress-2048","namespace":"default","error":"couldn't auto-discover subnets: unable to discover at least one subnet"}
{"level":"error","ts":1668397163.3413012,"logger":"controller.ingress","msg":"Reconciler error","name":"ingress-2048","namespace":"default","error":"couldn't auto-discover subnets: unable to discover at least one subnet"}
{"level":"error","ts":1668397163.4856465,"logger":"controller.ingress","msg":"Reconciler error","name":"ingress-2048","namespace":"default","error":"couldn't auto-discover subnets: unable to discover at least one subnet"}
{"level":"error","ts":1668397163.7127712,"logger":"controller.ingress","msg":"Reconciler error","name":"ingress-2048","namespace":"default","error":"couldn't auto-discover subnets: unable to discover at least one subnet"}
{"level":"error","ts":1668397164.094966,"logger":"controller.ingress","msg":"Reconciler error","name":"ingress-2048","namespace":"default","error":"couldn't auto-discover subnets: unable to discover at least one subnet"}
{"level":"error","ts":1668397164.8004348,"logger":"controller.ingress","msg":"Reconciler error","name":"ingress-2048","namespace":"default","error":"couldn't auto-discover subnets: unable to discover at least one subnet"}

解决办法：
原因：
如果是通过eksctl创建的subnet，那么自动已经打好标签了，我是因为使用现有的subnet，所以这些标签没有加上，需要手动添加。打标签的时候，如果是直接从网页复制粘贴，可能无意会粘贴上换行符，导致失败
解决相关文档
官网文档有解析
在这里插入图片描述
添加标签，我这边有两个子网，都是这样添加
在这里插入图片描述
重启pod

[root@ip-172-93-6-200 gamefi]# kubectl replace --force -f v2_4_5_full.yaml
customresourcedefinition.apiextensions.k8s.io "ingressclassparams.elbv2.k8s.aws" deleted
customresourcedefinition.apiextensions.k8s.io "targetgroupbindings.elbv2.k8s.aws" deleted
serviceaccount "aws-load-balancer-controller" deleted
role.rbac.authorization.k8s.io "aws-load-balancer-controller-leader-election-role" deleted
clusterrole.rbac.authorization.k8s.io "aws-load-balancer-controller-role" deleted
rolebinding.rbac.authorization.k8s.io "aws-load-balancer-controller-leader-election-rolebinding" deleted
clusterrolebinding.rbac.authorization.k8s.io "aws-load-balancer-controller-rolebinding" deleted
service "aws-load-balancer-webhook-service" deleted
deployment.apps "aws-load-balancer-controller" deleted
certificate.cert-manager.io "aws-load-balancer-serving-cert" deleted
issuer.cert-manager.io "aws-load-balancer-selfsigned-issuer" deleted
mutatingwebhookconfiguration.admissionregistration.k8s.io "aws-load-balancer-webhook" deleted
validatingwebhookconfiguration.admissionregistration.k8s.io "aws-load-balancer-webhook" deleted
ingressclass.networking.k8s.io "alb" deleted
customresourcedefinition.apiextensions.k8s.io/ingressclassparams.elbv2.k8s.aws replaced
customresourcedefinition.apiextensions.k8s.io/targetgroupbindings.elbv2.k8s.aws replaced
serviceaccount/aws-load-balancer-controller replaced
role.rbac.authorization.k8s.io/aws-load-balancer-controller-leader-election-role replaced
clusterrole.rbac.authorization.k8s.io/aws-load-balancer-controller-role replaced
rolebinding.rbac.authorization.k8s.io/aws-load-balancer-controller-leader-election-rolebinding replaced
clusterrolebinding.rbac.authorization.k8s.io/aws-load-balancer-controller-rolebinding replaced
service/aws-load-balancer-webhook-service replaced
deployment.apps/aws-load-balancer-controller replaced
certificate.cert-manager.io/aws-load-balancer-serving-cert replaced
issuer.cert-manager.io/aws-load-balancer-selfsigned-issuer replaced
mutatingwebhookconfiguration.admissionregistration.k8s.io/aws-load-balancer-webhook replaced
validatingwebhookconfiguration.admissionregistration.k8s.io/aws-load-balancer-webhook replaced
ingressclass.networking.k8s.io/alb replaced

查询日志如下
在这里插入图片描述

[root@ip-172-93-6-200 gamefi]# aws ec2 describe-subnets --subnet-ids subnet-0670a45dccf9fad59 --region ap-east-1
{"Subnets": [{"MapPublicIpOnLaunch": true, "AvailabilityZoneId": "ape1-az2", "Tags": [{"Value": "1", "Key": "kubernetes.io/role/elb"}, {"Value": "pre-gamefi-public", "Key": "Name"}], "AvailableIpAddressCount": 231, "DefaultForAz": false, "SubnetArn": "arn:aws:ec2:ap-east-1:759261269341:subnet/subnet-0670a45dccf9fad59", "Ipv6CidrBlockAssociationSet": [], "VpcId": "vpc-09197fd1833f76a27", "MapCustomerOwnedIpOnLaunch": false, "AvailabilityZone": "ap-east-1b", "SubnetId": "subnet-0670a45dccf9fad59", "OwnerId": "759261269341", "CidrBlock": "172.93.6.0/24", "State": "available", "AssignIpv6AddressOnCreation": false}]
}

启动2048游戏时报错
错误三：

[root@ip-172-93-6-200 gamefi]# kubectl replace --force -f https://raw.githubusercontent.com/kubernetes-sigs/aws-load-balancer-controller/v2.2.0/docs/examples/2048/2048_full.yaml
unable to recognize "https://raw.githubusercontent.com/kubernetes-sigs/aws-load-balancer-controller/v2.2.0/docs/examples/2048/2048_full.yaml": no matches for kind "Ingress" in version "networking.k8s.io/v1beta1"

查询负载均衡对应的pod

[root@ip-172-93-6-200 gamefi]# kubectl get pods --all-namespaces -o wide |grep aws-load-balancer-controller-5d589484dc-442cc
kube-system    aws-load-balancer-controller-5d589484dc-442cc   1/1     Running            0                 3m35s   172.93.5.236   ip-172-93-5-25.ap-east-1.compute.internal

原因：
在部署Ingress-nginx过程中（我使用的是1.23版本的k8s），遇到问题 “no matches for kind “Ingress” in version “networking.k8s.io/v1beta1””，查阅资料确定是因为k8s版本过新且已不支持对应的api，所有需要对其进行更改。
资料1
资料2
解决办法:
将最后ingess部分如下

#---
#apiVersion: networking.k8s.io/v1beta1
#kind: Ingress
#metadata:
#  namespace: game-2048
#  name: ingress-2048
#  annotations:
#    kubernetes.io/ingress.class: alb
#    alb.ingress.kubernetes.io/scheme: internet-facing
#    alb.ingress.kubernetes.io/target-type: ip
#spec:
#  rules:
#    - http:
#        paths:
#          - path: /*
#            backend:
#              serviceName: service-2048
#              servicePort: 80

更改成下面的

[root@ip-172-93-6-200 gamefi]# https://raw.githubusercontent.com/kubernetes-sigs/aws-load-balancer-controller/v2.2.0/docs/examples/2048/2048_full.yaml
[root@ip-172-93-6-200 gamefi]# vim 2048_full.yaml
---
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:namespace: game-2048name: ingress-2048annotations:kubernetes.io/ingress.class: albalb.ingress.kubernetes.io/scheme: internet-facingalb.ingress.kubernetes.io/target-type: ip
spec:rules:- host: "foo.bar.com"http:paths:- pathType: Prefixpath: "/*"backend:service:name: service-2048port:number: 80
#  - host: "*.foo.com"
#    http:
#      paths:
#      - pathType: Prefix
#        path: "/foo"
#        backend:
#          service:
#            name: service2
#            port:
#              number: 80

最后重新启动pod 2048

[root@ip-172-93-6-200 gamefi]# kubectl replace --force -f 2048_full.yaml
namespace "game-2048" deleted
deployment.apps "deployment-2048" deleted
service "service-2048" deleted
ingress.networking.k8s.io "ingress-2048" deleted
namespace/game-2048 replaced
deployment.apps/deployment-2048 replaced
service/service-2048 replaced
ingress.networking.k8s.io/ingress-2048 replaced

还是没有解决问题，最后通过下载2.4.5版本的2048
2048-2.4.5版本
文本内容如下

---
apiVersion: v1
kind: Namespace
metadata:name: game-2048
---
apiVersion: apps/v1
kind: Deployment
metadata:namespace: game-2048name: deployment-2048
spec:selector:matchLabels:app.kubernetes.io/name: app-2048replicas: 5template:metadata:labels:app.kubernetes.io/name: app-2048spec:containers:- image: public.ecr.aws/l6m2t8p7/docker-2048:latestimagePullPolicy: Alwaysname: app-2048ports:- containerPort: 80
---
apiVersion: v1
kind: Service
metadata:namespace: game-2048name: service-2048
spec:ports:- port: 80targetPort: 80protocol: TCPtype: NodePortselector:app.kubernetes.io/name: app-2048
---
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:namespace: game-2048name: ingress-2048annotations:alb.ingress.kubernetes.io/scheme: internet-facingalb.ingress.kubernetes.io/target-type: ip
spec:ingressClassName: albrules:- http:paths:- path: /pathType: Prefixbackend:service:name: service-2048port:number: 80

[root@ip-172-93-6-200 gamefi]# kubectl apply -f 2048_full.yaml
namespace/game-2048 created
deployment.apps/deployment-2048 created
service/service-2048 created
ingress.networking.k8s.io/ingress-2048 created

几分钟后，验证是否已使用以下命令创建入口资源。

[root@ip-172-93-6-200 gamefi]# kubectl get ingress/ingress-2048 -n game-2048
NAME           CLASS   HOSTS   ADDRESS                                                                  PORTS   AGE
ingress-2048   alb     *       k8s-game2048-ingress2-ASAAAAAAAAAAAAAAA.ap-east-1.elb.amazonaws.com   80      3m6s

查询现有的ALB
在这里插入图片描述
默认监听80端口
在这里插入图片描述
在这里插入图片描述
最后目标群组指向我们的5个pod
在这里插入图片描述
验证，输入上文中查询到的地址就可以访问了
在这里插入图片描述

上一篇：Handler 消息队列中的同步屏障——Message

下一篇：VSCode常用插件

相关内容

热门资讯

喜欢穿一身黑的男生性格（喜欢穿... 今天百科达人给各位分享喜欢穿一身黑的男生性格的知识，其中也会对喜欢穿一身黑衣服的男人人好相处吗进行解...
发春是什么意思（思春和发春是什... 本篇文章极速百科给大家谈谈发春是什么意思，以及思春和发春是什么意思对应的知识点，希望对各位有所帮助，...
网络用语zl是什么意思（zl是... 今天给各位分享网络用语zl是什么意思的知识，其中也会对zl是啥意思是什么网络用语进行解释，如果能碰巧...
为什么酷狗音乐自己唱的歌不能下... 本篇文章极速百科小编给大家谈谈为什么酷狗音乐自己唱的歌不能下载到本地?，以及为什么酷狗下载的歌曲不是...
华为下载未安装的文件去哪找（华... 今天百科达人给各位分享华为下载未安装的文件去哪找的知识，其中也会对华为下载未安装的文件去哪找到进行解...
怎么往应用助手里添加应用（应用... 今天百科达人给各位分享怎么往应用助手里添加应用的知识，其中也会对应用助手怎么添加微信进行解释，如果能...
家里可以做假山养金鱼吗（假山能... 今天百科达人给各位分享家里可以做假山养金鱼吗的知识，其中也会对假山能放鱼缸里吗进行解释，如果能碰巧解...
一帆风顺二龙腾飞三阳开泰祝福语... 本篇文章极速百科给大家谈谈一帆风顺二龙腾飞三阳开泰祝福语，以及一帆风顺二龙腾飞三阳开泰祝福语结婚对应...
四分五裂是什么生肖什么动物（四... 本篇文章极速百科小编给大家谈谈四分五裂是什么生肖什么动物，以及四分五裂打一生肖是什么对应的知识点，希...
美团联名卡审核成功待激活（美团... 今天百科达人给各位分享美团联名卡审核成功待激活的知识，其中也会对美团联名卡审核未通过进行解释，如果能...
