目录

一、整体框架

二、实现JwtToken验证

 1、添加依赖

2、编写、修改相关类

 三、实现后端 API

 四、实现前端的登录，注册界面

ps：本篇文章篇幅较长，且难度有所提升，希望大家耐心看完，种一棵树最好的时间是十年前，其次是现在

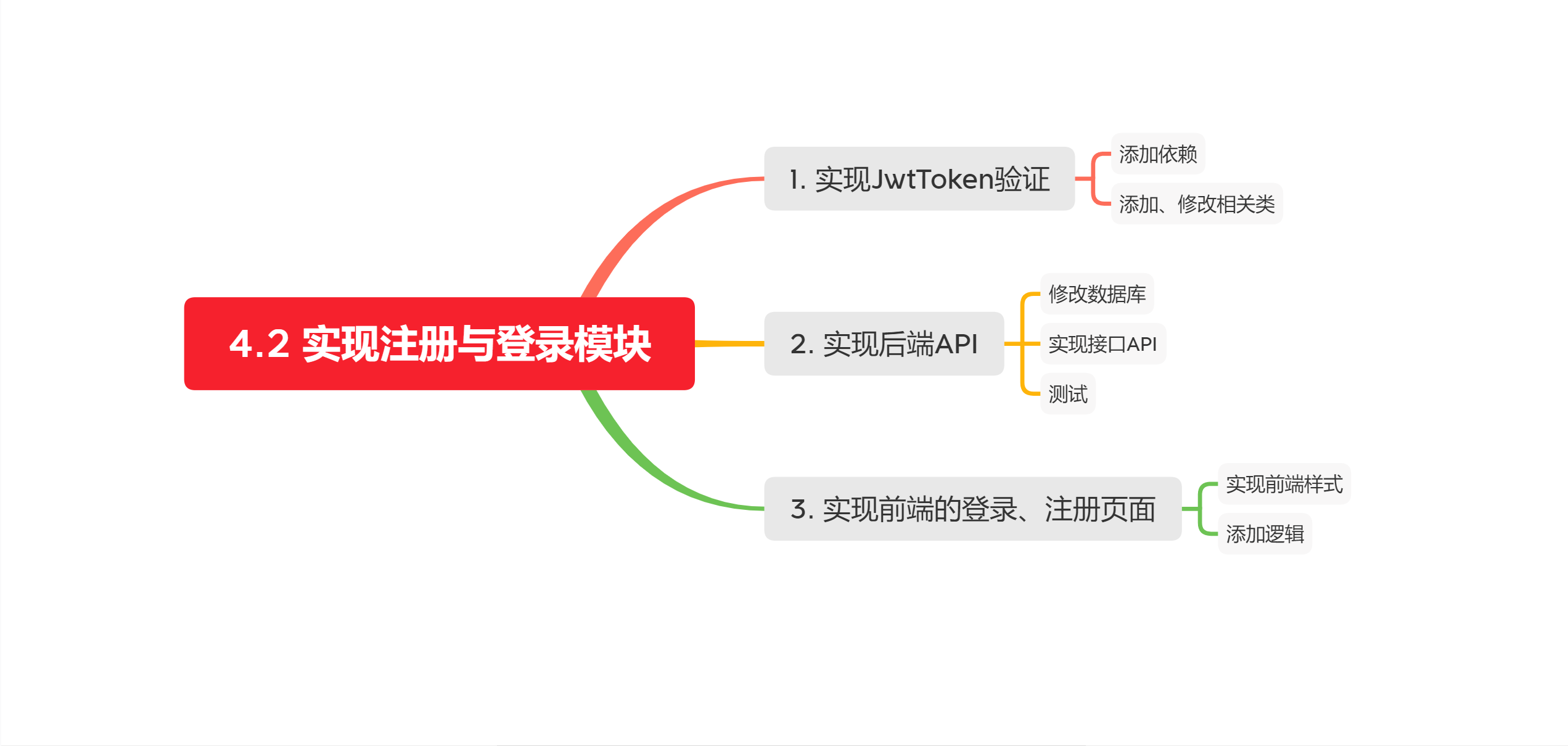

一、整体框架

二、实现JwtToken验证

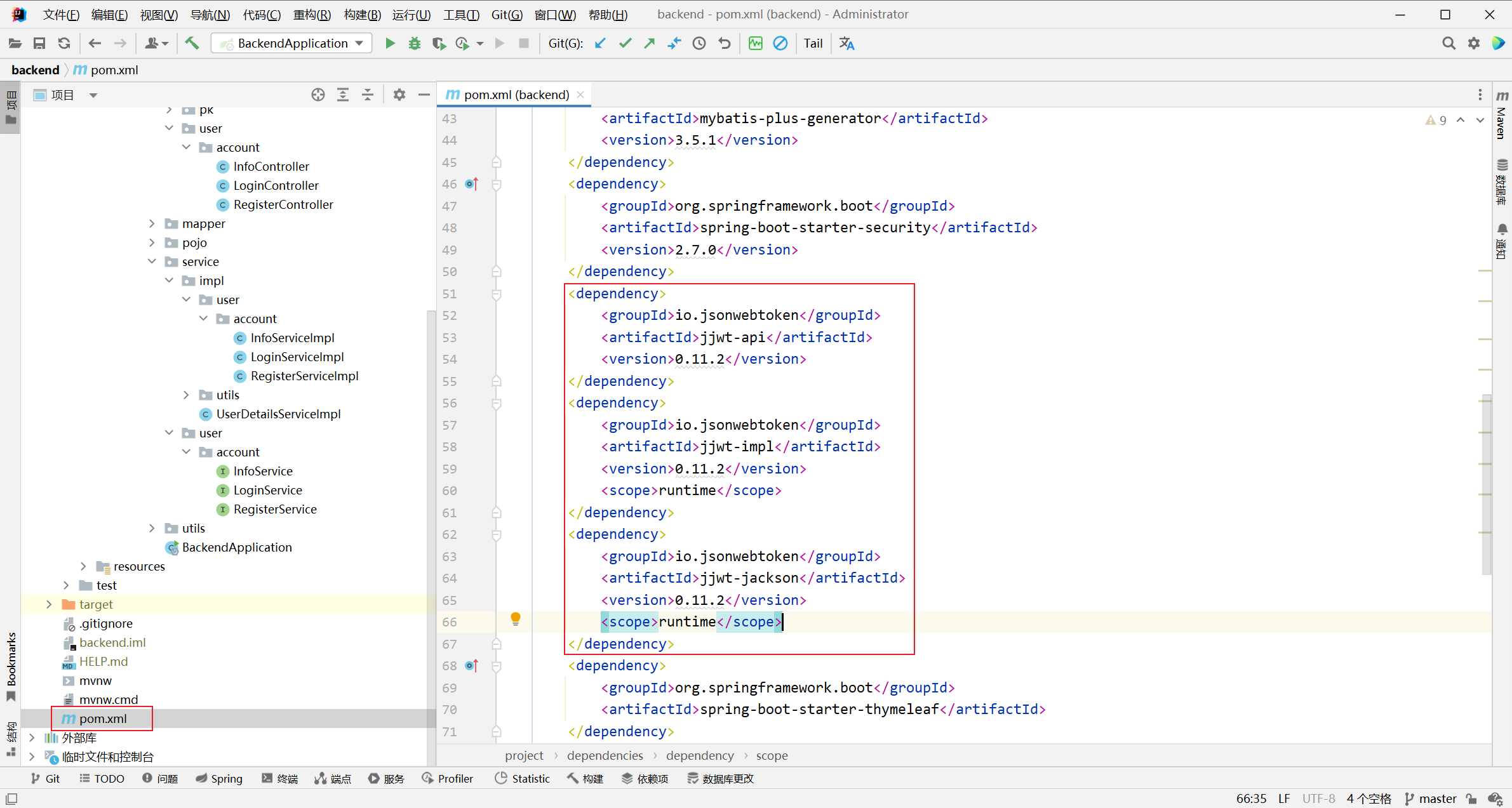

 1、添加依赖

在 pom.xml 中添加下列依赖：

jjwt-api
jjwt-impl
jjwt-jackson

io.jsonwebtokenjjwt-api0.11.2

io.jsonwebtokenjjwt-impl0.11.2runtime

io.jsonwebtokenjjwt-jackson0.11.2runtime

2、编写、修改相关类

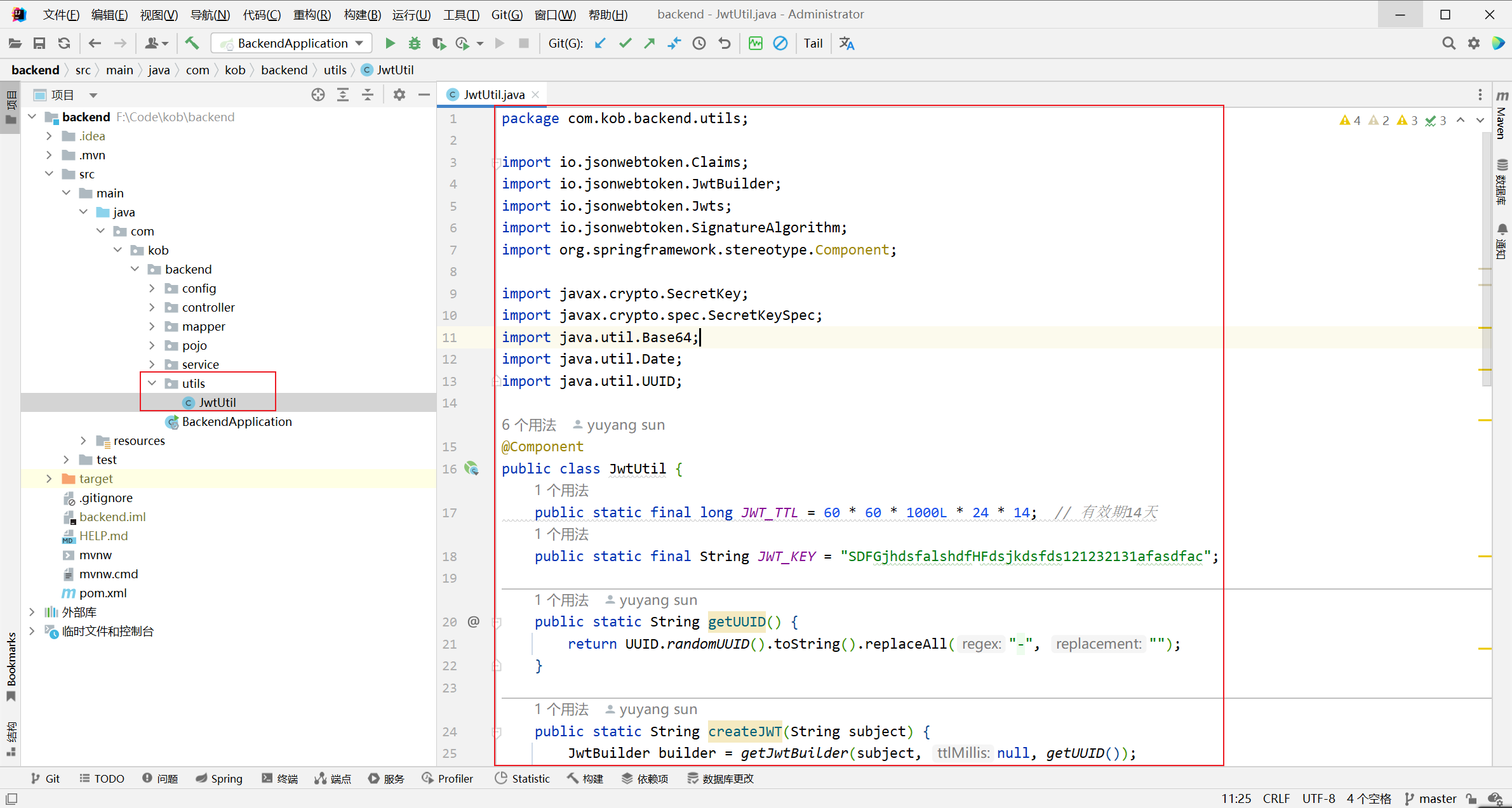

实现 JwtUtil 类
在 backend 目录下创建软件包 utils 并创建 JwtUtil 类。
JwtUtil 类为jwt 工具类，用来创建、解析 jwt token

package com.kob.backend.utils;import io.jsonwebtoken.Claims;
import io.jsonwebtoken.JwtBuilder;
import io.jsonwebtoken.Jwts;
import io.jsonwebtoken.SignatureAlgorithm;
import org.springframework.stereotype.Component;import javax.crypto.SecretKey;
import javax.crypto.spec.SecretKeySpec;
import java.util.Base64;
import java.util.Date;
import java.util.UUID;@Component
public class JwtUtil {public static final long JWT_TTL = 60 * 60 * 1000L * 24 * 14;  // 有效期14天public static final String JWT_KEY = "SDFGjhdsfalshdfHFdsjkdsfds121232131afasdfac";public static String getUUID() {return UUID.randomUUID().toString().replaceAll("-", "");}public static String createJWT(String subject) {JwtBuilder builder = getJwtBuilder(subject, null, getUUID());return builder.compact();}private static JwtBuilder getJwtBuilder(String subject, Long ttlMillis, String uuid) {SignatureAlgorithm signatureAlgorithm = SignatureAlgorithm.HS256;SecretKey secretKey = generalKey();long nowMillis = System.currentTimeMillis();Date now = new Date(nowMillis);if (ttlMillis == null) {ttlMillis = JwtUtil.JWT_TTL;}long expMillis = nowMillis + ttlMillis;Date expDate = new Date(expMillis);return Jwts.builder().setId(uuid).setSubject(subject).setIssuer("sg").setIssuedAt(now).signWith(signatureAlgorithm, secretKey).setExpiration(expDate);}public static SecretKey generalKey() {byte[] encodeKey = Base64.getDecoder().decode(JwtUtil.JWT_KEY);return new SecretKeySpec(encodeKey, 0, encodeKey.length, "HmacSHA256");}public static Claims parseJWT(String jwt) throws Exception {SecretKey secretKey = generalKey();return Jwts.parserBuilder().setSigningKey(secretKey).build().parseClaimsJws(jwt).getBody();}
}

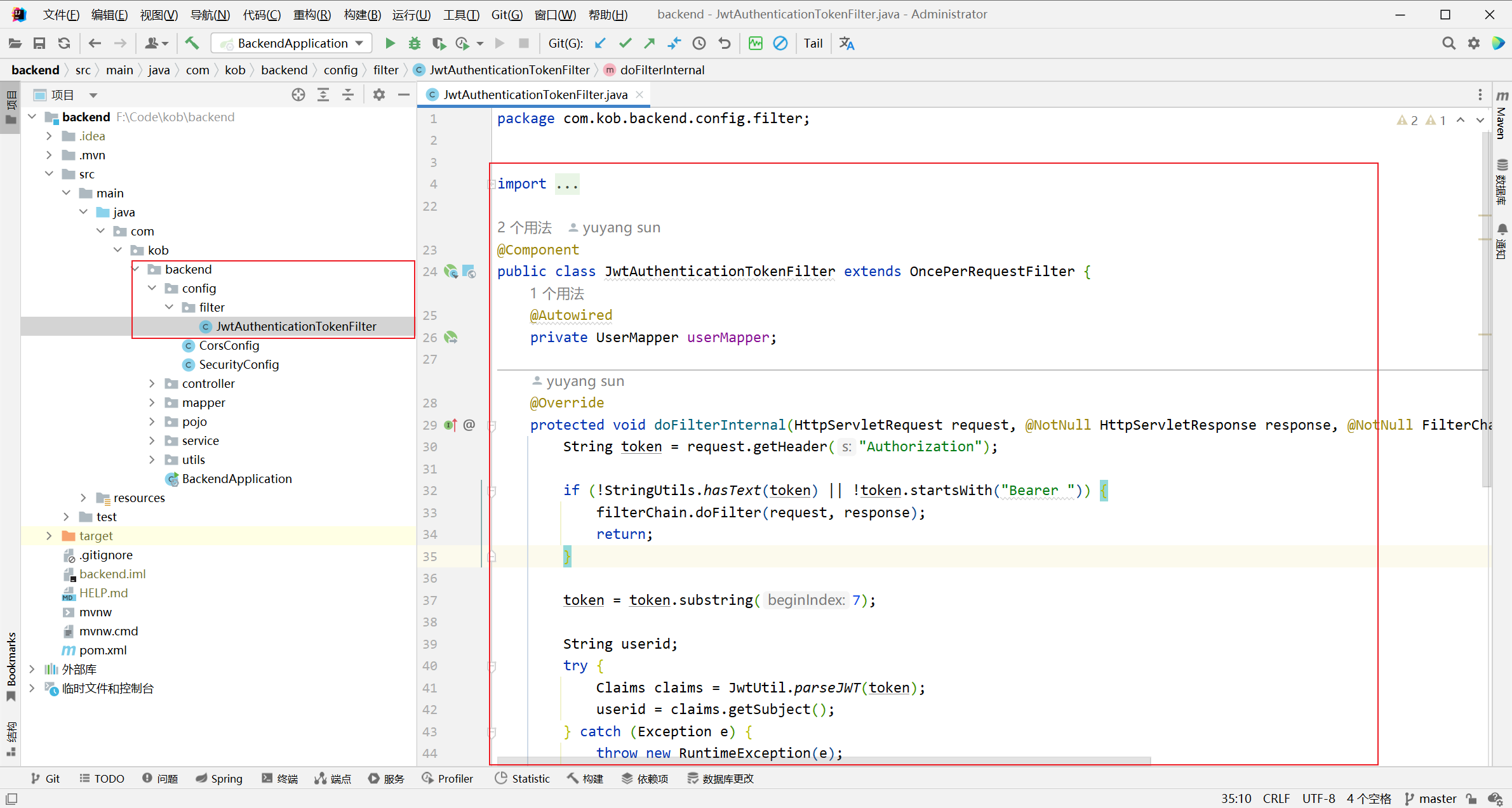

 实现 JwtAuthenticationTokenFilter 类
在 backend 的 config 目录下创建 cinfig 软件包，并创建 JwtAuthenticationTokenFilter 类。
实现 JwtAuthenticationTokenFilter 类，用来验证 jwt token ，如果验证成功，则将 User 信息注入上下文中。

package com.kob.backend.config.filter;import com.kob.backend.mapper.UserMapper;
import com.kob.backend.pojo.User;
import com.kob.backend.service.impl.utils.UserDetailsImpl;
import com.kob.backend.utils.JwtUtil;
import com.sun.istack.internal.NotNull;
import io.jsonwebtoken.Claims;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.security.authentication.UsernamePasswordAuthenticationToken;
import org.springframework.security.core.context.SecurityContextHolder;
import org.springframework.stereotype.Component;
import org.springframework.util.StringUtils;
import org.springframework.web.filter.OncePerRequestFilter;import javax.servlet.FilterChain;
import javax.servlet.ServletException;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import java.io.IOException;@Component
public class JwtAuthenticationTokenFilter extends OncePerRequestFilter {@Autowiredprivate UserMapper userMapper;@Overrideprotected void doFilterInternal(HttpServletRequest request, @NotNull HttpServletResponse response, @NotNull FilterChain filterChain) throws ServletException, IOException {String token = request.getHeader("Authorization");if (!StringUtils.hasText(token) || !token.startsWith("Bearer ")) {filterChain.doFilter(request, response);return;}token = token.substring(7);String userid;try {Claims claims = JwtUtil.parseJWT(token);userid = claims.getSubject();} catch (Exception e) {throw new RuntimeException(e);}User user = userMapper.selectById(Integer.parseInt(userid));if (user == null) {throw new RuntimeException("用户名未登录");}UserDetailsImpl loginUser = new UserDetailsImpl(user);UsernamePasswordAuthenticationToken authenticationToken =new UsernamePasswordAuthenticationToken(loginUser, null, null);SecurityContextHolder.getContext().setAuthentication(authenticationToken);filterChain.doFilter(request, response);}
}

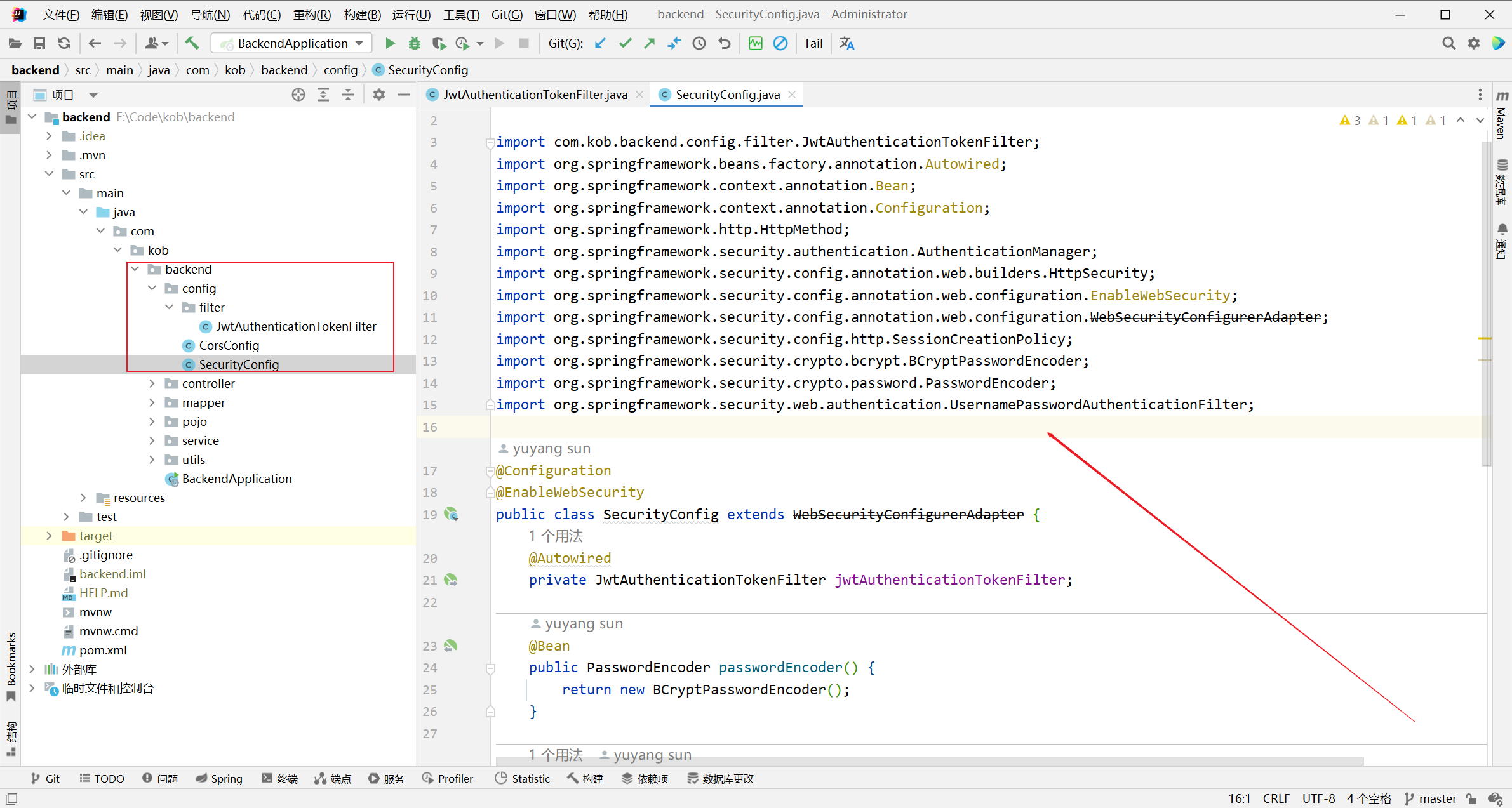

 配置config.SecurityConfig类
放行登录、注册等接口。

package com.kob.backend.config;import com.kob.backend.config.filter.JwtAuthenticationTokenFilter;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.http.HttpMethod;
import org.springframework.security.authentication.AuthenticationManager;
import org.springframework.security.config.annotation.web.builders.HttpSecurity;
import org.springframework.security.config.annotation.web.configuration.EnableWebSecurity;
import org.springframework.security.config.annotation.web.configuration.WebSecurityConfigurerAdapter;
import org.springframework.security.config.http.SessionCreationPolicy;
import org.springframework.security.crypto.bcrypt.BCryptPasswordEncoder;
import org.springframework.security.crypto.password.PasswordEncoder;
import org.springframework.security.web.authentication.UsernamePasswordAuthenticationFilter;@Configuration
@EnableWebSecurity
public class SecurityConfig extends WebSecurityConfigurerAdapter {@Autowiredprivate JwtAuthenticationTokenFilter jwtAuthenticationTokenFilter;@Beanpublic PasswordEncoder passwordEncoder() {return new BCryptPasswordEncoder();}@Bean@Overridepublic AuthenticationManager authenticationManagerBean() throws Exception {return super.authenticationManagerBean();}@Overrideprotected void configure(HttpSecurity http) throws Exception {http.csrf().disable().sessionManagement().sessionCreationPolicy(SessionCreationPolicy.STATELESS).and().authorizeRequests().antMatchers("/user/account/token/", "/user/account/register/").permitAll().antMatchers(HttpMethod.OPTIONS).permitAll().anyRequest().authenticated();http.addFilterBefore(jwtAuthenticationTokenFilter, UsernamePasswordAuthenticationFilter.class);}
}

 三、实现后端 API

将数据库中的 id 域变为自增。
在 pojo.User 类中添加注解：@TableId(type = IdType.AUTO)

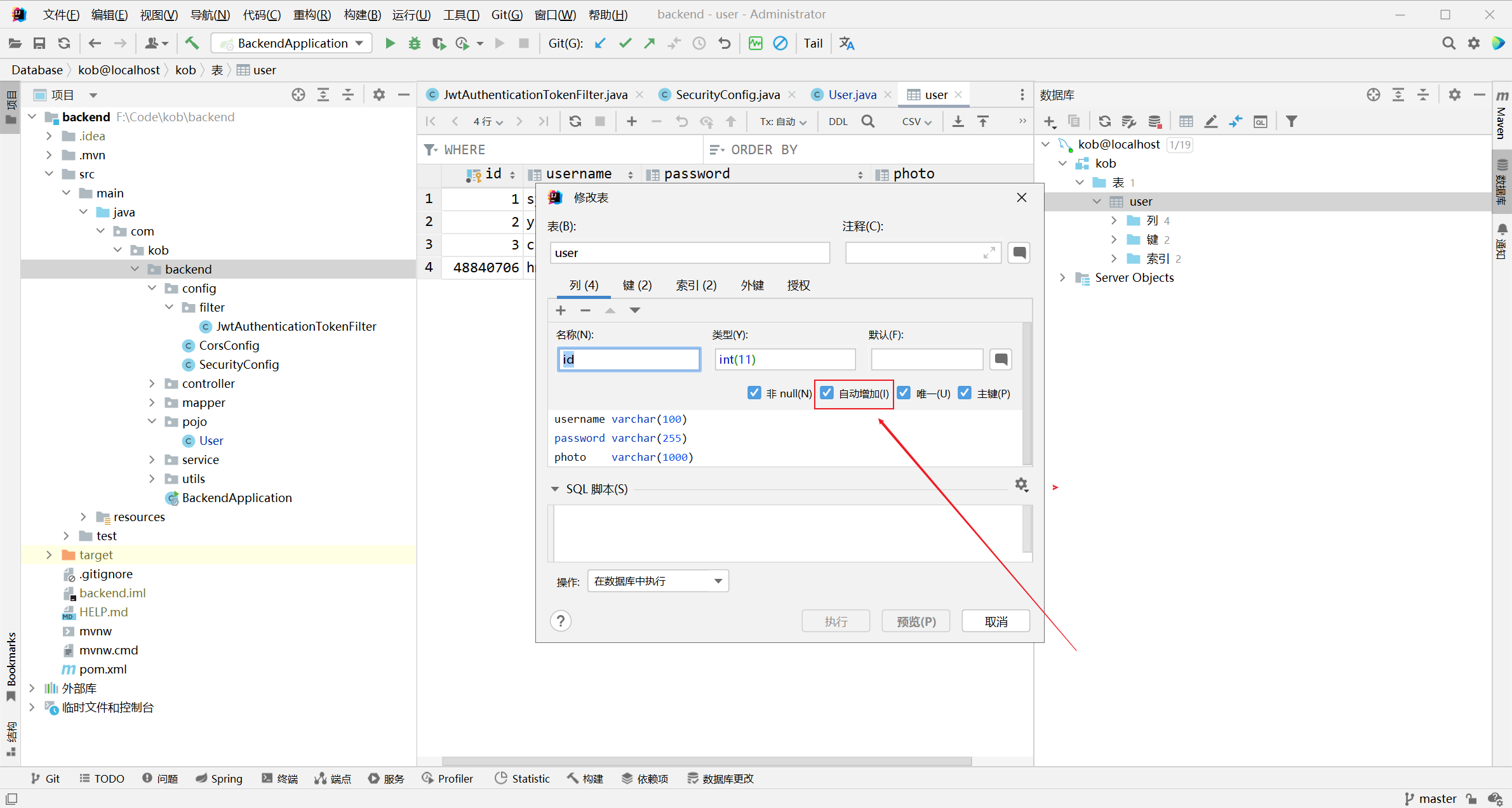

右击 user ，点击 修改表 ，双击 id ，选择 自动增加。同时添加一列 photo，类型设置为 varchar(1000) ，用来存储照片，默认值可以设置为自己的头像。

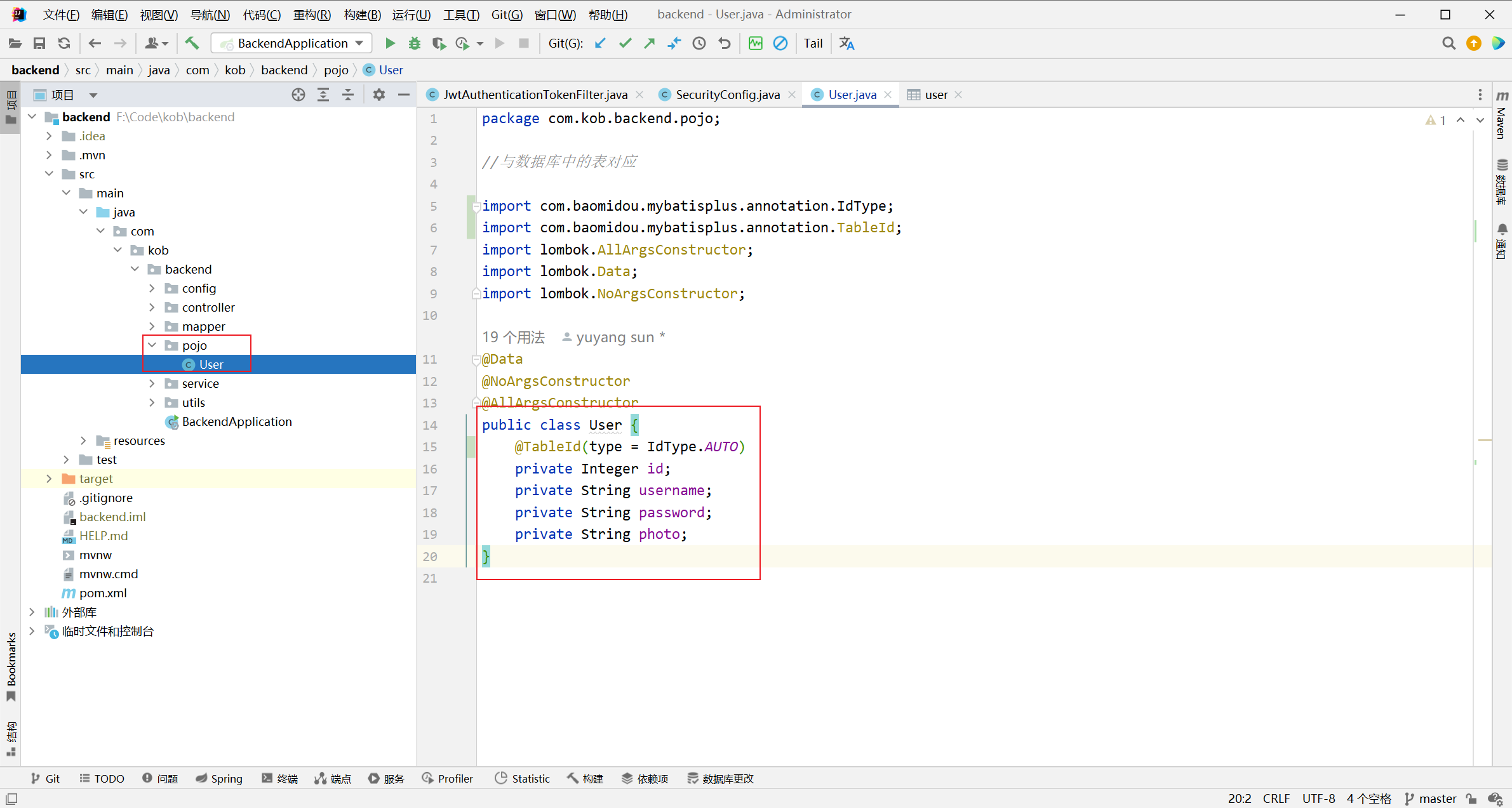

 修改 User ，添加 photo

package com.kob.backend.pojo;
//与数据库中的表对应
import com.baomidou.mybatisplus.annotation.IdType;
import com.baomidou.mybatisplus.annotation.TableId;
import lombok.AllArgsConstructor;
import lombok.Data;
import lombok.NoArgsConstructor;@Data
@NoArgsConstructor
@AllArgsConstructor
public class User {@TableId(type = IdType.AUTO)private Integer id;private String username;private String password;private String photo;
}

 实现接口API
实现API需要三个相关类或接口：

在 service 下创建一个接口。
在 service 下创建一个类实现这个接口。
在 controller 下创建一个类进行操作。

实现 LoginService
验证用户名密码，验证成功后返回 jwt token（令牌）

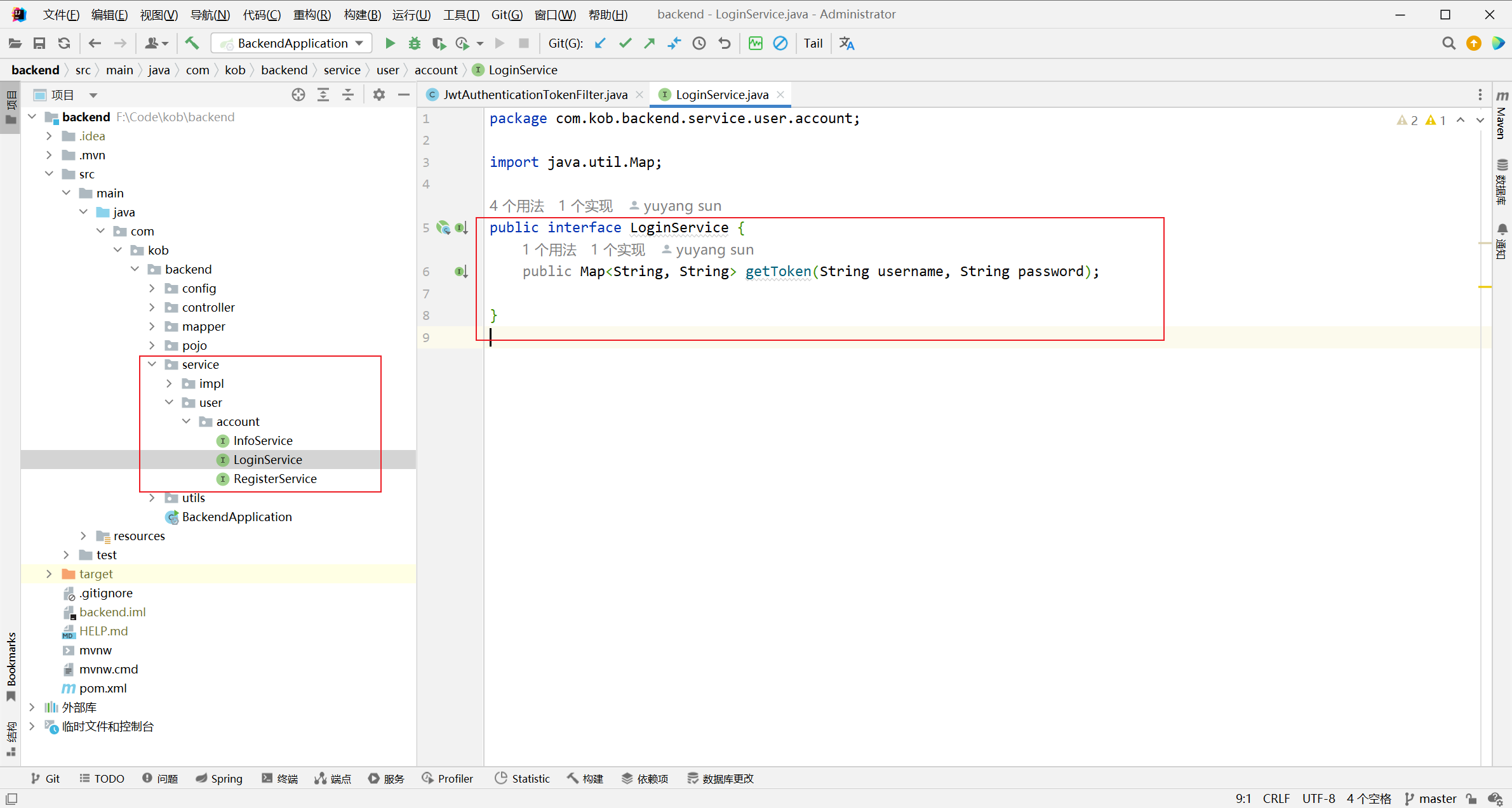

创建接口：在 service下 创建 user 创建 account 新建一个接口 LoginService

package com.kob.backend.service.user.account;import java.util.Map;public interface LoginService {public Map getToken(String username, String password);}

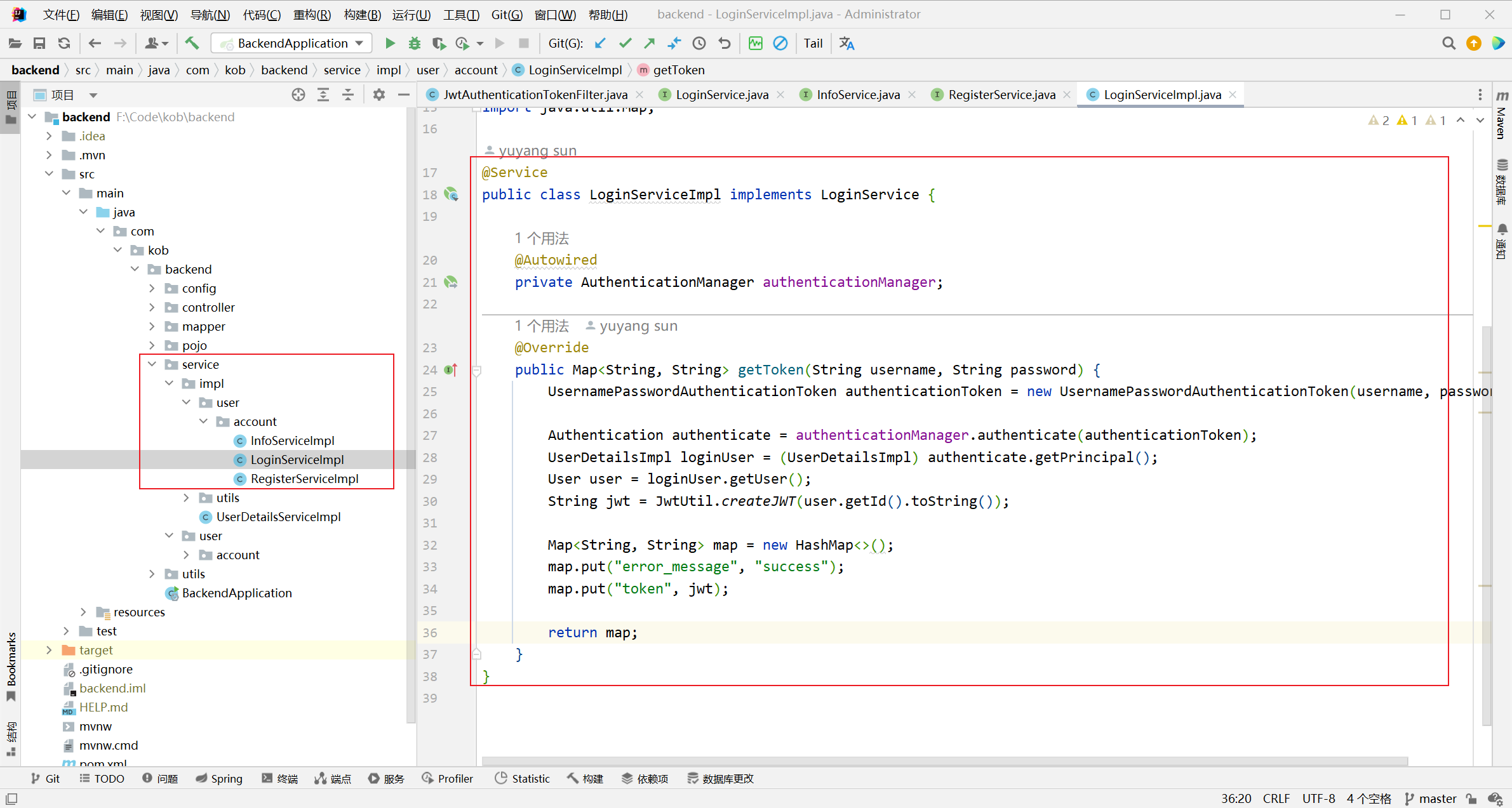

 创建实现类：在 service下 impl 下创建 user 创建 account 新建一个实现类LoginServiceImpl

package com.kob.backend.service.impl.user.account;import com.kob.backend.pojo.User;
import com.kob.backend.service.impl.utils.UserDetailsImpl;
import com.kob.backend.service.user.account.LoginService;
import com.kob.backend.utils.JwtUtil;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.boot.autoconfigure.neo4j.Neo4jProperties;
import org.springframework.security.authentication.AuthenticationManager;
import org.springframework.security.authentication.UsernamePasswordAuthenticationToken;
import org.springframework.security.core.Authentication;
import org.springframework.stereotype.Service;import java.util.HashMap;
import java.util.Map;@Service
public class LoginServiceImpl implements LoginService {@Autowiredprivate AuthenticationManager authenticationManager;@Overridepublic Map getToken(String username, String password) {UsernamePasswordAuthenticationToken authenticationToken = new UsernamePasswordAuthenticationToken(username, password);Authentication authenticate = authenticationManager.authenticate(authenticationToken);UserDetailsImpl loginUser = (UserDetailsImpl) authenticate.getPrincipal();User user = loginUser.getUser();String jwt = JwtUtil.createJWT(user.getId().toString());Map map = new HashMap<>();map.put("error_message", "success");map.put("token", jwt);return map;}
}

 创建controller：在 controller 创建 user 创建 account 新建一个LoginController

package com.kob.backend.controller.user.account;import com.kob.backend.service.user.account.LoginService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.PostMapping;
import org.springframework.web.bind.annotation.RequestParam;
import org.springframework.web.bind.annotation.RestController;import java.util.Map;@RestController
public class LoginController {@Autowiredprivate LoginService loginService;@PostMapping("/user/account/token/")public Map getToken(@RequestParam Map map) {String username = map.get("username");String password = map.get("password");System.out.println(username + ' ' + password);return loginService.getToken(username, password);}
}

 配置InforService类
根据令牌返回用户信息。

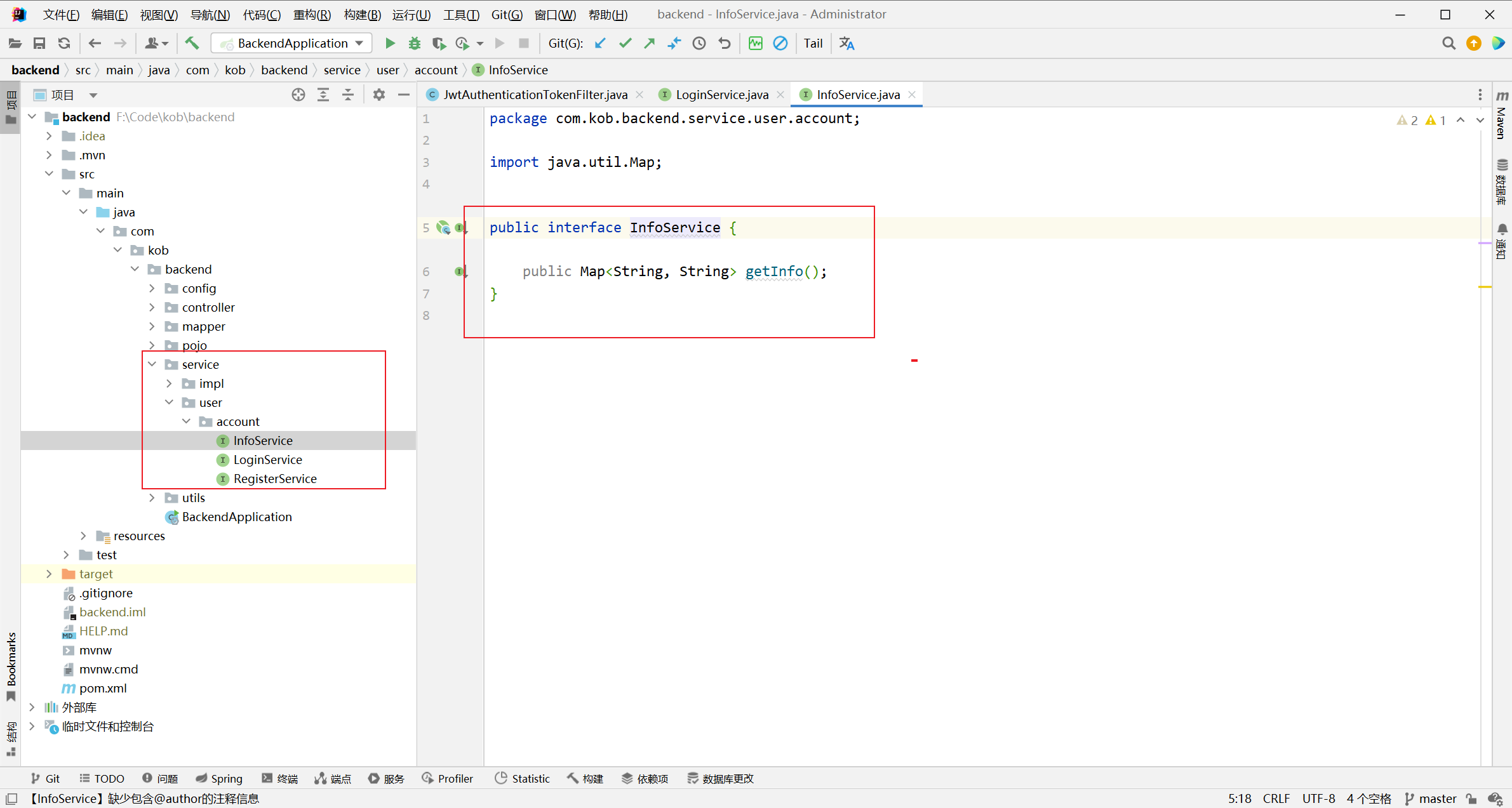

创建接口：在 service下 创建 user 创建 account 新建一个接口 InfoService

package com.kob.backend.service.user.account;import java.util.Map;public interface InfoService {public Map getInfo();
}

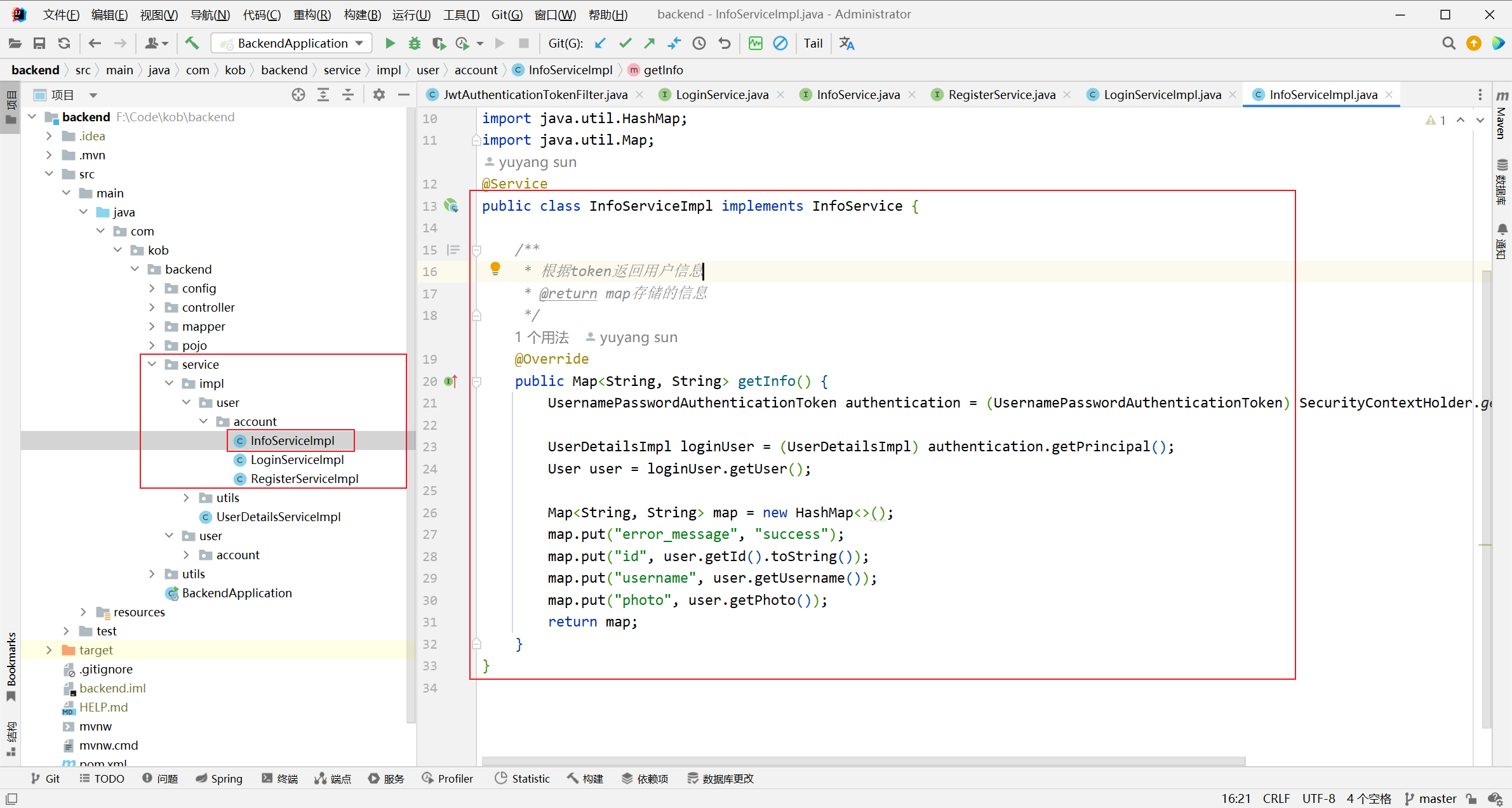

 创建实现类：在 service下 impl 下创建 user 创建 account 新建一个实现类InfoServiceImpl

package com.kob.backend.service.impl.user.account;import com.kob.backend.pojo.User;
import com.kob.backend.service.impl.utils.UserDetailsImpl;
import com.kob.backend.service.user.account.InfoService;
import org.springframework.security.authentication.UsernamePasswordAuthenticationToken;
import org.springframework.security.core.context.SecurityContextHolder;
import org.springframework.stereotype.Service;import java.util.HashMap;
import java.util.Map;
@Service
public class InfoServiceImpl implements InfoService {/*** 根据token返回用户信息* @return map存储的信息*/@Overridepublic Map getInfo() {UsernamePasswordAuthenticationToken authentication = (UsernamePasswordAuthenticationToken) SecurityContextHolder.getContext().getAuthentication();UserDetailsImpl loginUser = (UserDetailsImpl) authentication.getPrincipal();User user = loginUser.getUser();Map map = new HashMap<>();map.put("error_message", "success");map.put("id", user.getId().toString());map.put("username", user.getUsername());map.put("photo", user.getPhoto());return map;}
}

 创建controller：在 controller 创建 user 创建 account 新建一个InfoController

package com.kob.backend.controller.user.account;import com.kob.backend.service.user.account.InfoService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RestController;import java.util.Map;@RestController
public class InfoController {@Autowiredprivate InfoService infoService;@GetMapping("/user/account/info/")public Map getInfo() {return infoService.getInfo();}
}

 配置RegisterService类
注册账号

创建接口：在 service下 创建 user 创建 account 新建一个接口 RegisterService

package com.kob.backend.service.user.account;import java.util.Map;public interface RegisterService {public Map register(String username, String password, String confirmedPassword);
}

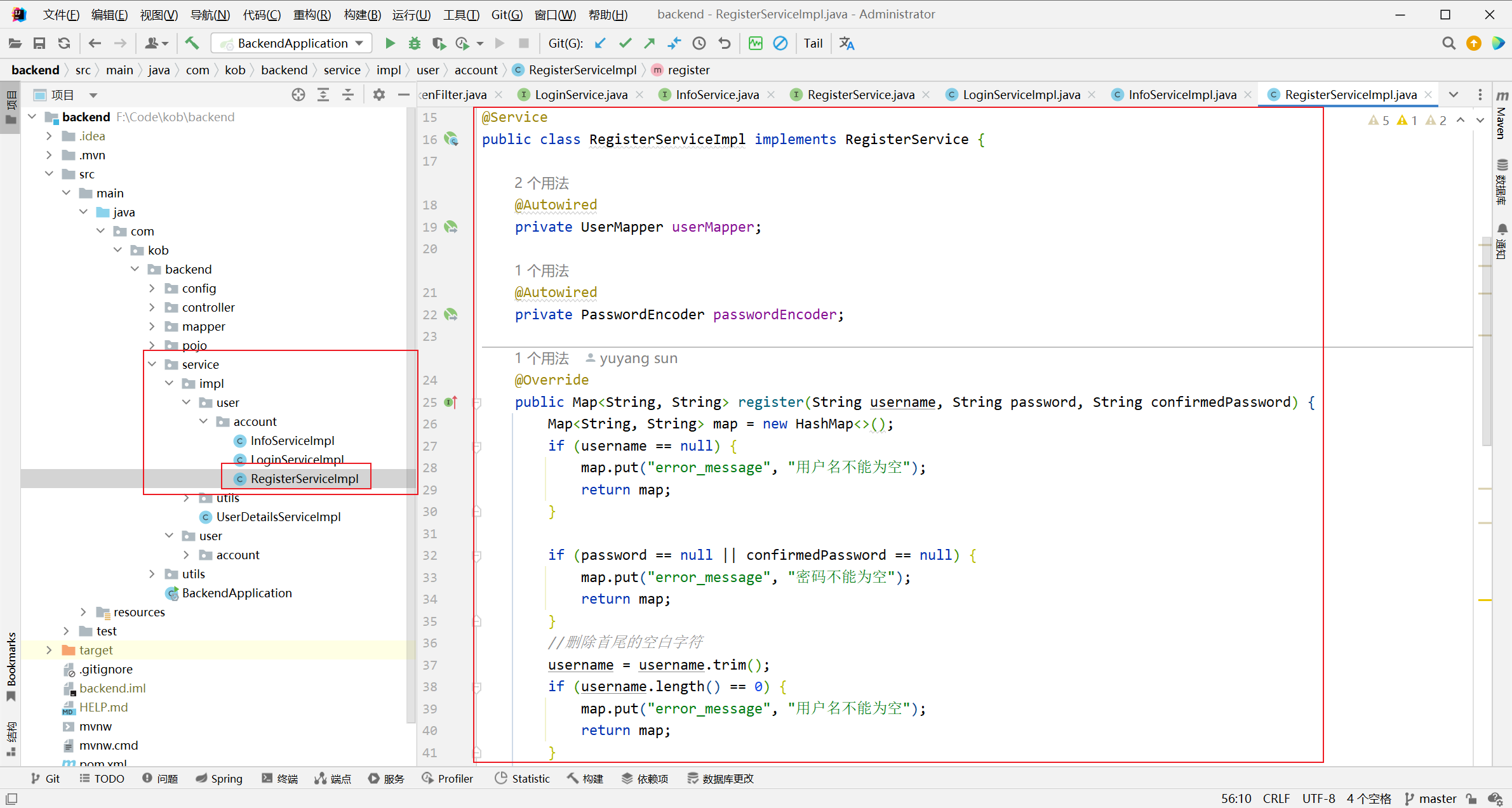

 创建实现类：在 service下 impl 下创建 user 创建 account 新建一个实现类RegisterServiceImpl

package com.kob.backend.service.impl.user.account;import com.baomidou.mybatisplus.core.conditions.query.QueryWrapper;
import com.kob.backend.mapper.UserMapper;
import com.kob.backend.pojo.User;
import com.kob.backend.service.user.account.RegisterService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.security.crypto.password.PasswordEncoder;
import org.springframework.stereotype.Service;import java.util.HashMap;
import java.util.List;
import java.util.Map;@Service
public class RegisterServiceImpl implements RegisterService {@Autowiredprivate UserMapper userMapper;@Autowiredprivate PasswordEncoder passwordEncoder;@Overridepublic Map register(String username, String password, String confirmedPassword) {Map map = new HashMap<>();if (username == null) {map.put("error_message", "用户名不能为空");return map;}if (password == null || confirmedPassword == null) {map.put("error_message", "密码不能为空");return map;}//删除首尾的空白字符username = username.trim();if (username.length() == 0) {map.put("error_message", "用户名不能为空");return map;}if (password.length() == 0 || confirmedPassword.length() == 0) {map.put("error_message", "密码不能为空");return map;}if (username.length() > 100) {map.put("error_message", "用户名长度不能大于100");return map;}if (password.length() > 100 || confirmedPassword.length() > 100) {map.put("error_message", "密码不能大于100");return map;}if (!password.equals(confirmedPassword)) {map.put("error_message", "两次输入的密码不一致");return map;}//查询用户名是否重复QueryWrapper queryWrapper = new QueryWrapper();queryWrapper.eq("username", username);List users = userMapper.selectList(queryWrapper);if (!users.isEmpty()) {map.put("error_message", "用户名已存在");return map;}// 添加一个新用户String encodedPassword = passwordEncoder.encode(password);//输入自己的图片地址String photo = "******************************";User user = new User(null, username, encodedPassword, photo);userMapper.insert(user);map.put("error_message", "success");return map;}
}

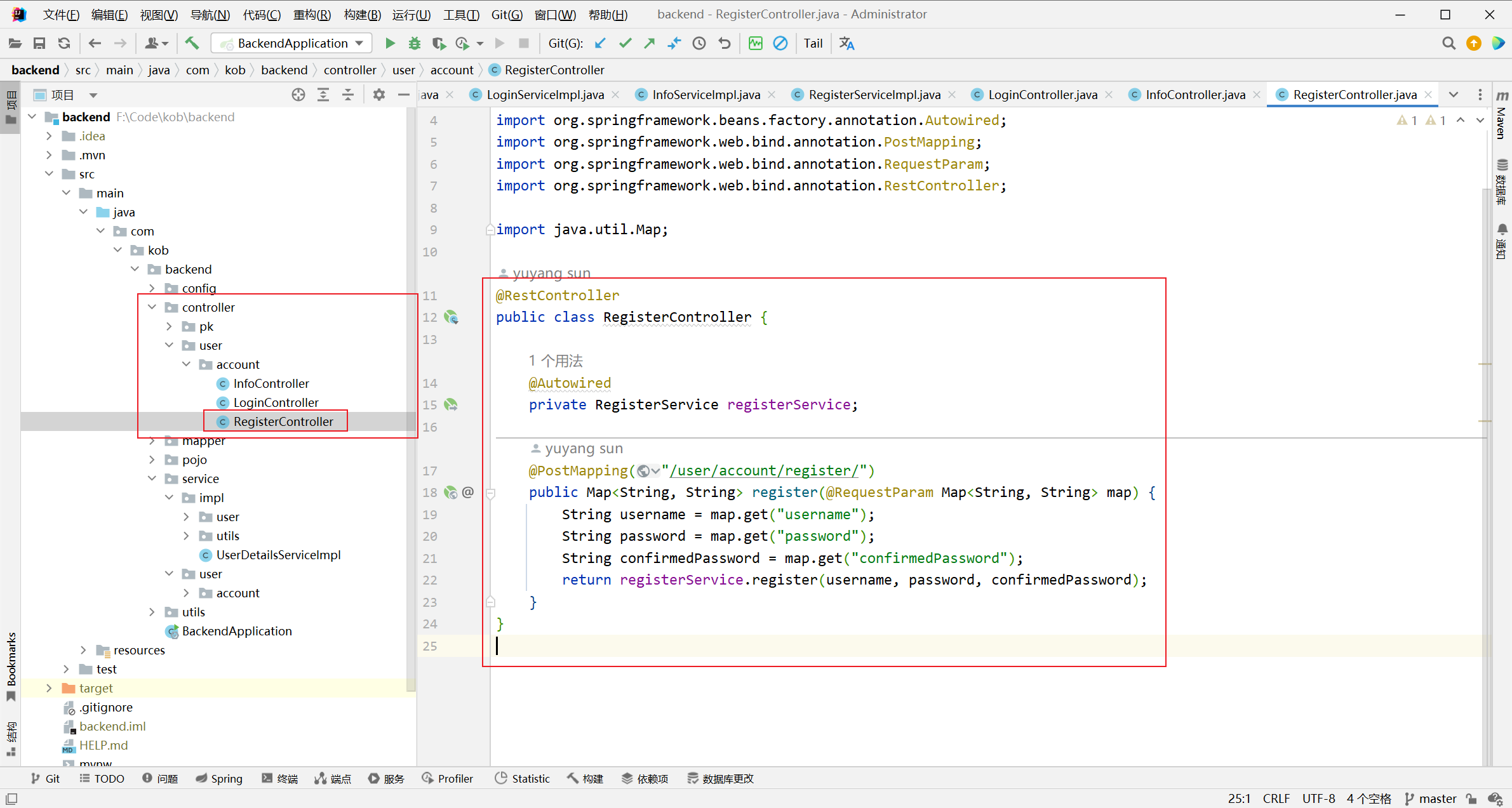

 创建controller：在 controller 创建 user 创建 account 新建一个RegisterController

package com.kob.backend.controller.user.account;import com.kob.backend.service.user.account.RegisterService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.PostMapping;
import org.springframework.web.bind.annotation.RequestParam;
import org.springframework.web.bind.annotation.RestController;import java.util.Map;@RestController
public class RegisterController {@Autowiredprivate RegisterService registerService;@PostMapping("/user/account/register/")public Map register(@RequestParam Map map) {String username = map.get("username");String password = map.get("password");String confirmedPassword = map.get("confirmedPassword");return registerService.register(username, password, confirmedPassword);}
}

 调试接口API
验证用户登陆：

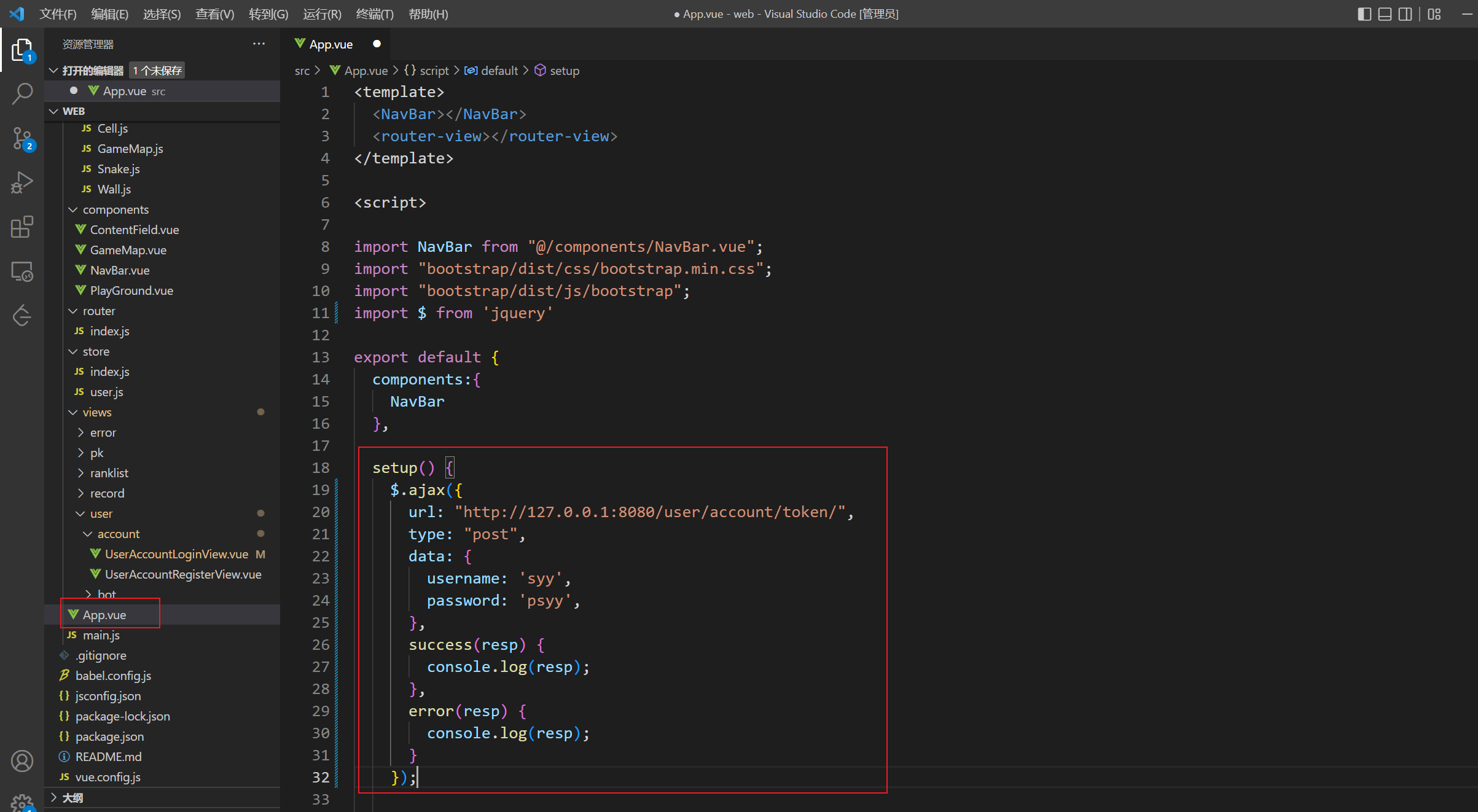

在 APP.vue 中编写：

注意：这里的Authorization: “Bearer “有空格，且token为自己的浏览器的token，需要更改token。

 四、实现前端的登录，注册界面

实现两个页面–登陆、注册的前端样式：

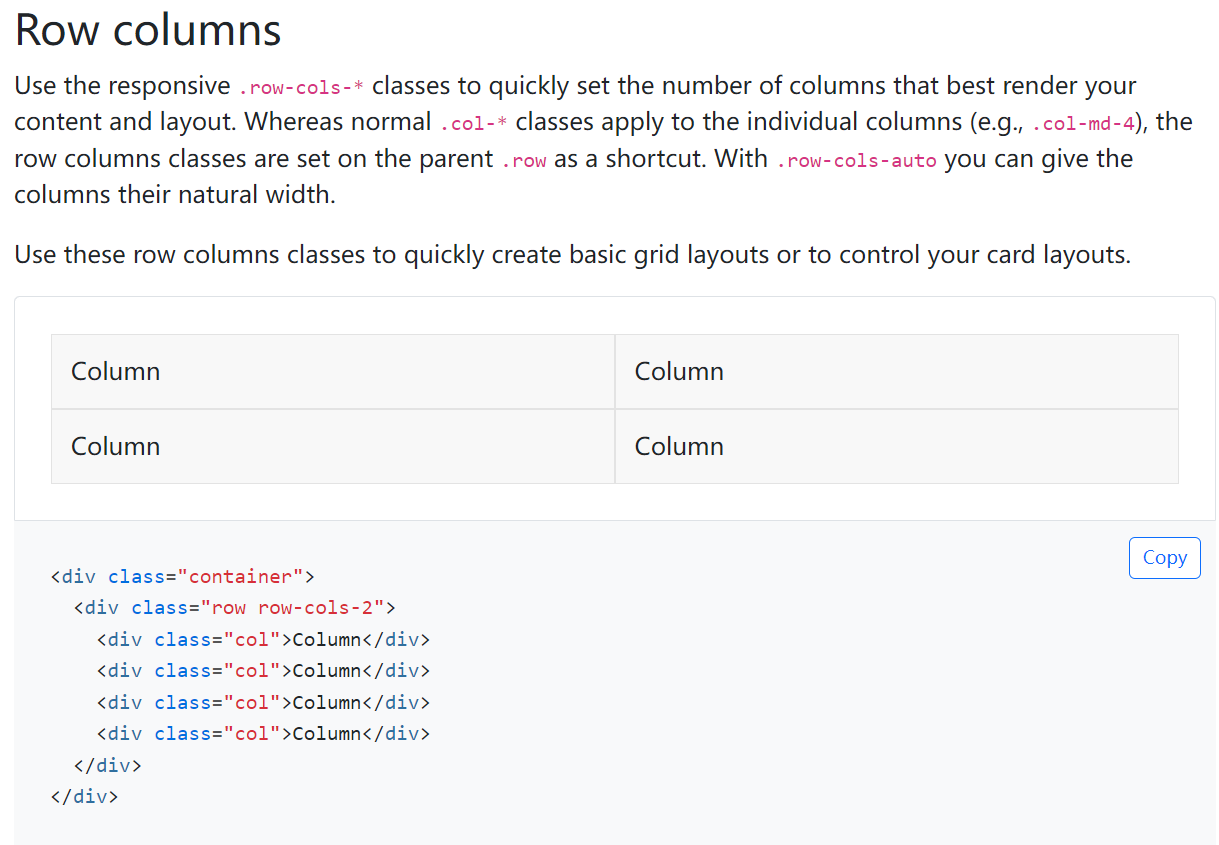

从 bootstrap 上去寻找合适的样式：

举个例子：

样式：

Column
Column

Email address

Example textarea

 提交按钮

Primary

创建页面：

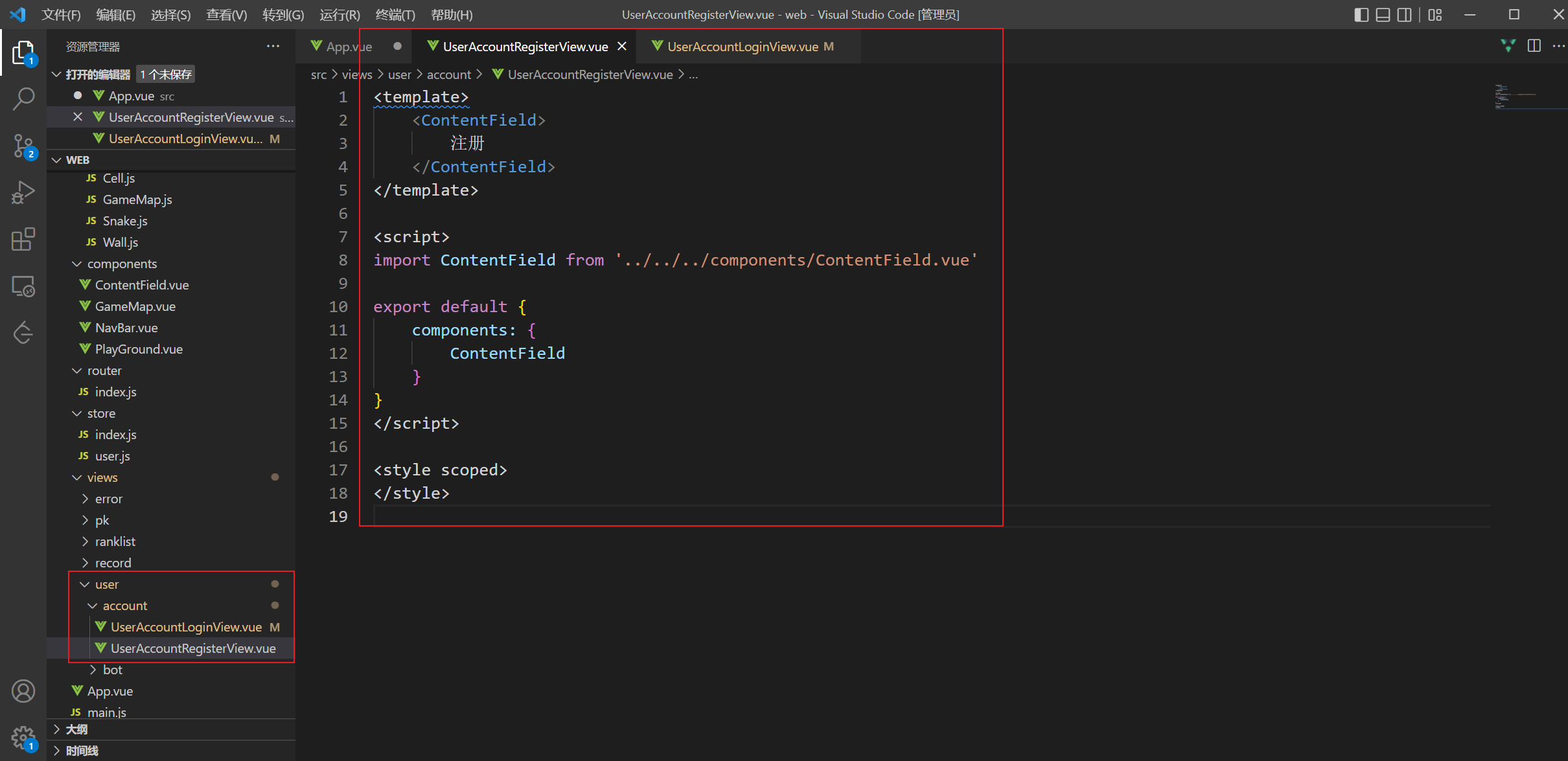

在 views 目录下创建 user ，新建两个文件 UserAccountLoginView.vue 和 UserAccountRegisterView.vue 。

实现 UserAccountRegisterView.vue 页面：

 实现 UserAccountLoginView.vue 页面：

 在router目录下的index.js中加入路径

修改 index.js：

import UserAccountLoginView from '../views/user/account/UserAccountLoginView'
import UserAccountRegisterView from '../views/user/account/UserAccountRegisterView'const routes = [{path: "/user/account/login",name: "user_account_login",component: UserAccountLoginView,},{path: "/user/account/register",name: "user_account_register",component: UserAccountRegisterView,}]const router = createRouter({history: createWebHistory(),routes
})export default router

在store下的user.js存储用户信息

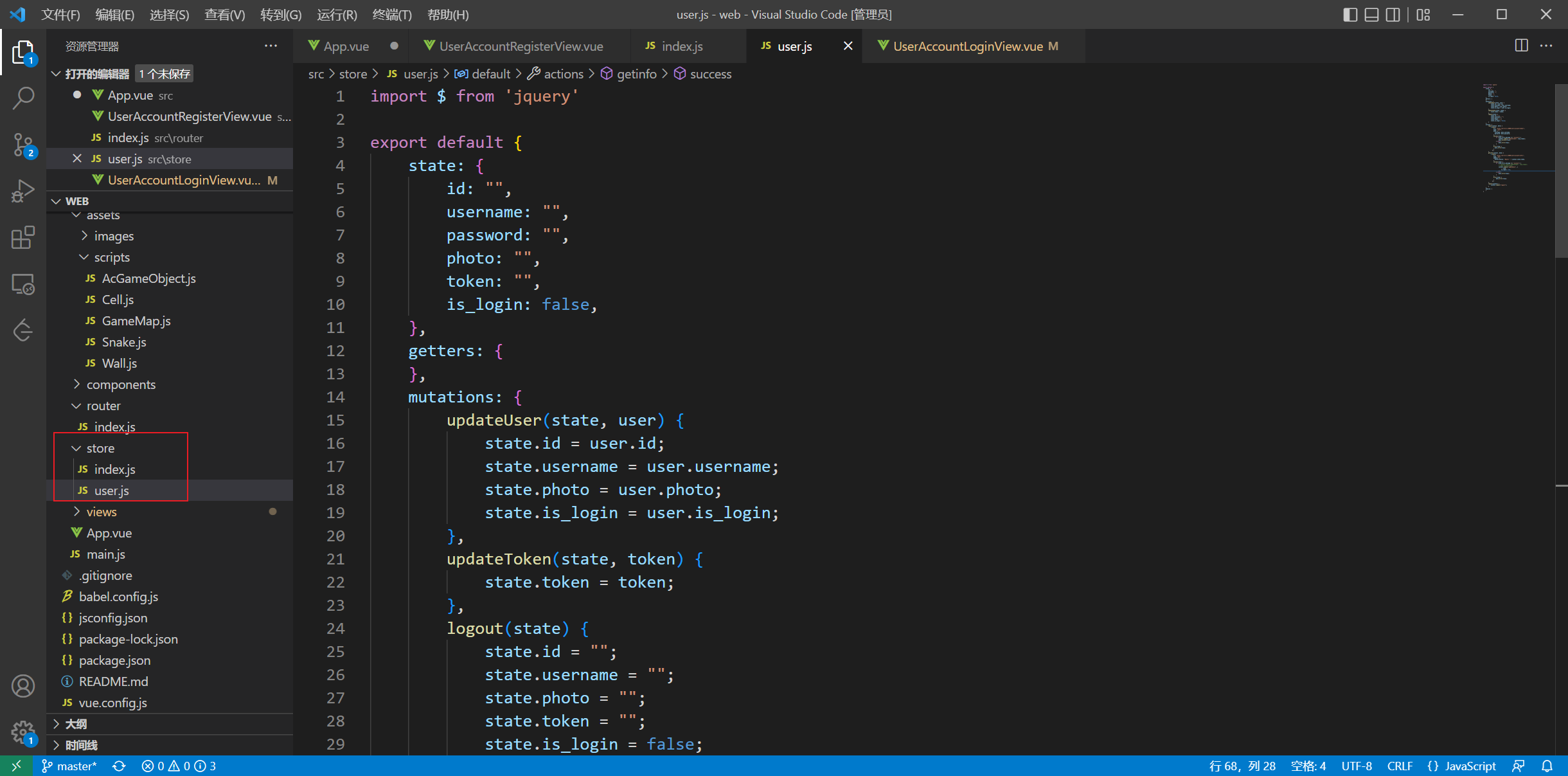

在 store 下创建 user.js

import $ from 'jquery'export default {state: {id: "",username: "",password: "",photo: "",token: "",is_login: false,},getters: {},mutations: {updateUser(state, user) {state.id = user.id;state.username = user.username;state.photo = user.photo;state.is_login = user.is_login;},updateToken(state, token) {state.token = token;},},actions: {},modules: {}
}

 把user加入到全局module

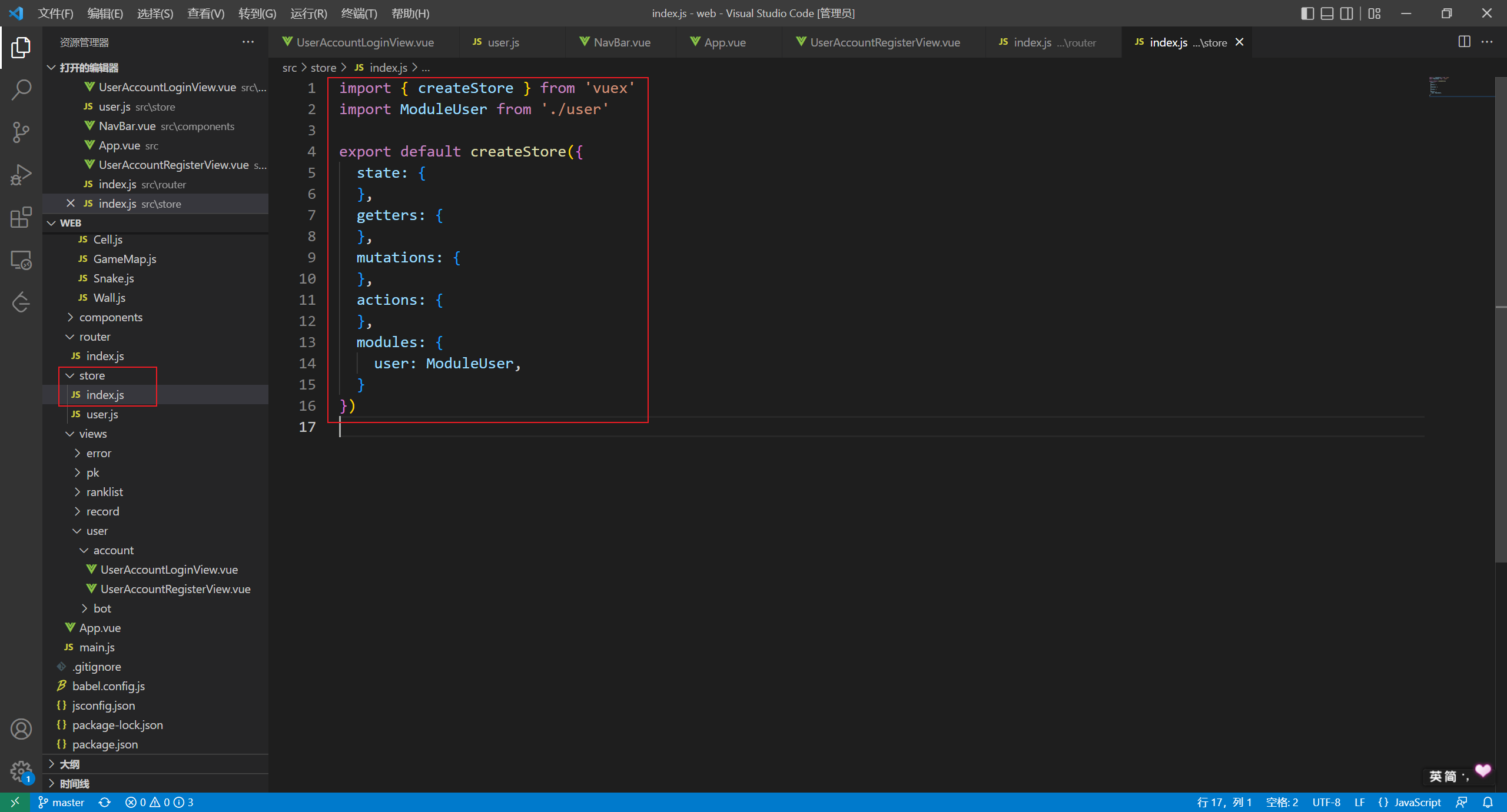

在 store 下的 index.js

import { createStore } from 'vuex'
import ModuleUser from './user'export default createStore({state: {},getters: {},mutations: {},actions: {},modules: {user: ModuleUser,}
})

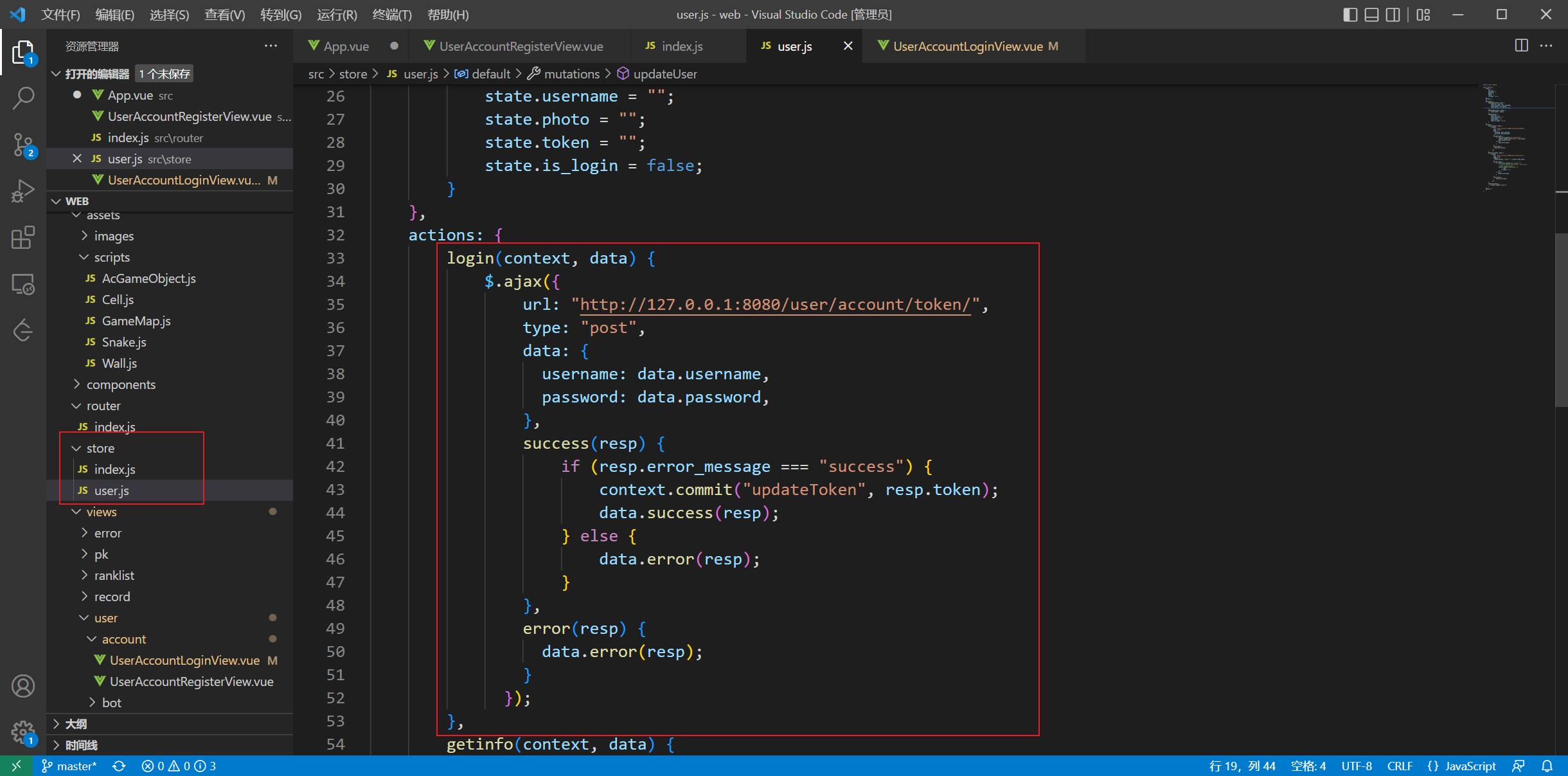

 添加辅助函数login
在 store 下的 user.js 修改。

import $ from 'jquery'export default {state: {id: "",username: "",password: "",photo: "",token: "",is_login: false,},getters: {},mutations: {updateUser(state, user) {state.id = user.id;state.username = user.username;state.photo = user.photo;state.is_login = user.is_login;},updateToken(state, token) {state.token = token;},},actions: {login(context, data) {$.ajax({url: "http://127.0.0.1:8080/user/account/token/",type: "post",data: {username: data.username,password: data.password,},success(resp) {if (resp.error_message === "success") {context.commit("updateToken", resp.token);data.success(resp);} else {data.error(resp);}},error(resp) {data.error(resp); }});},},modules: {}
}

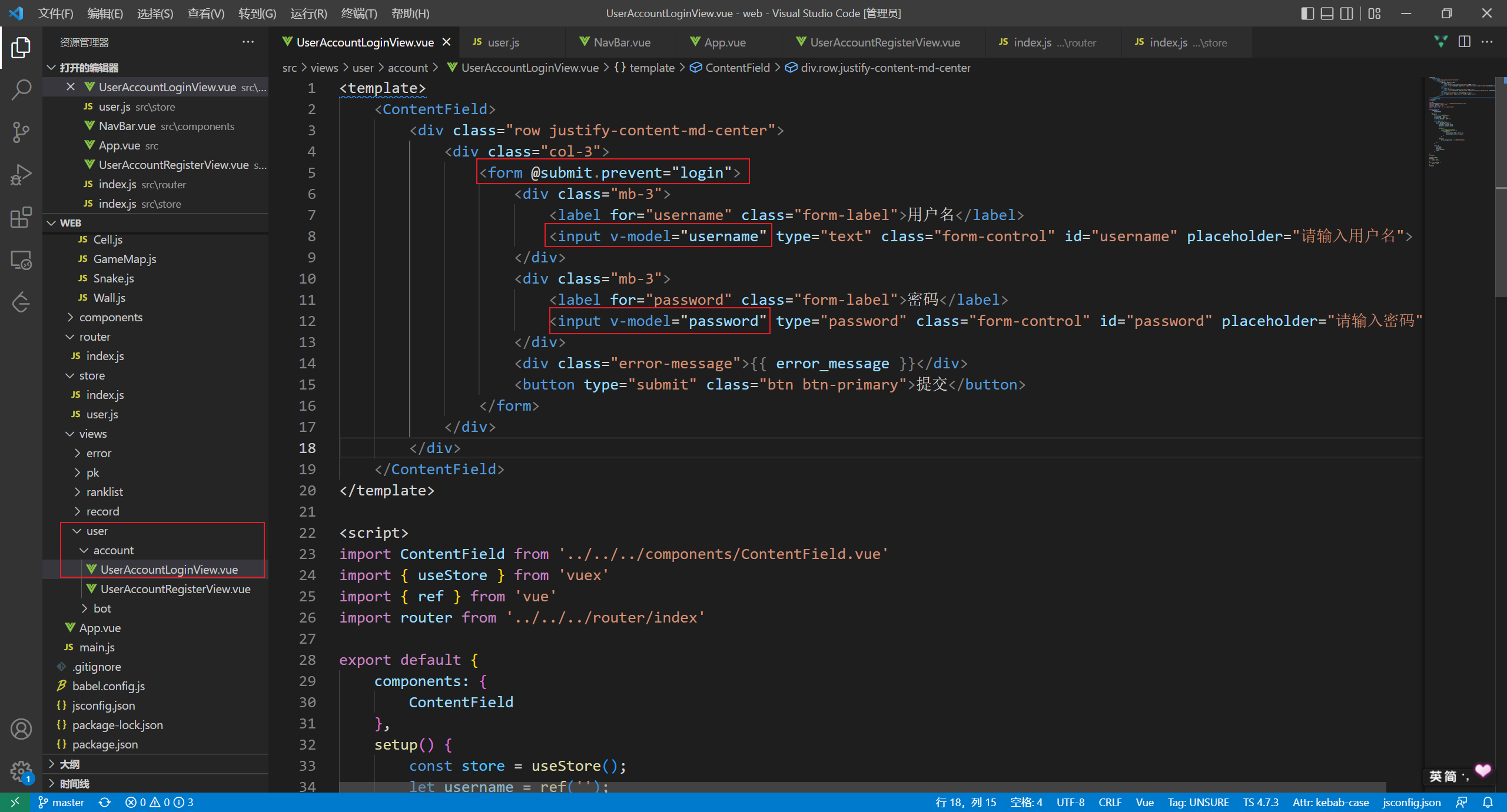

 在 UserAccountLoginView.vue 中实现

  把内容和变量绑定起来：

用户名
密码
{{ error_message }}
提交

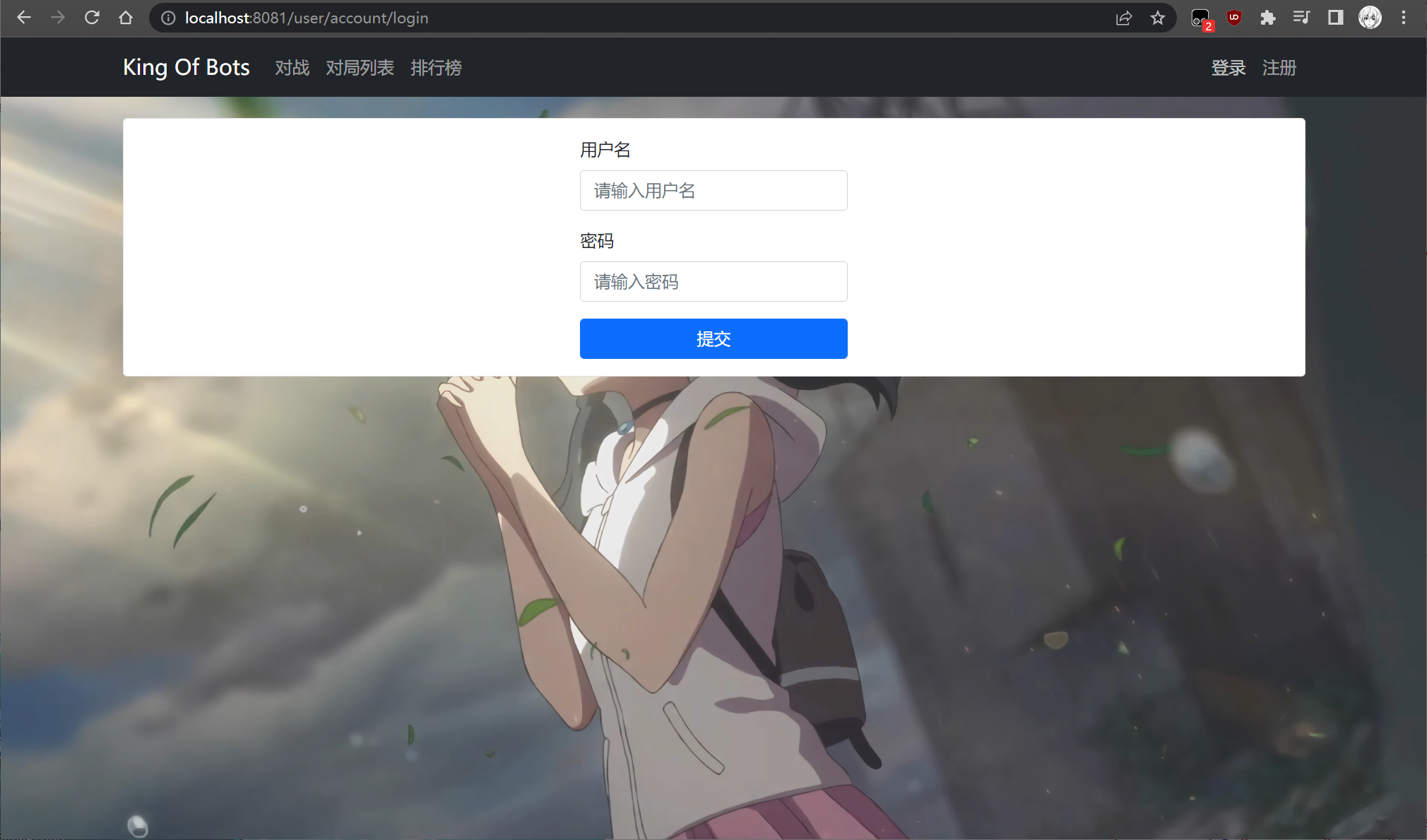

 在登陆界面测试
输入用户名和密码，获取 token。

 用户名和密码输入正确，点击提交跳到主页面

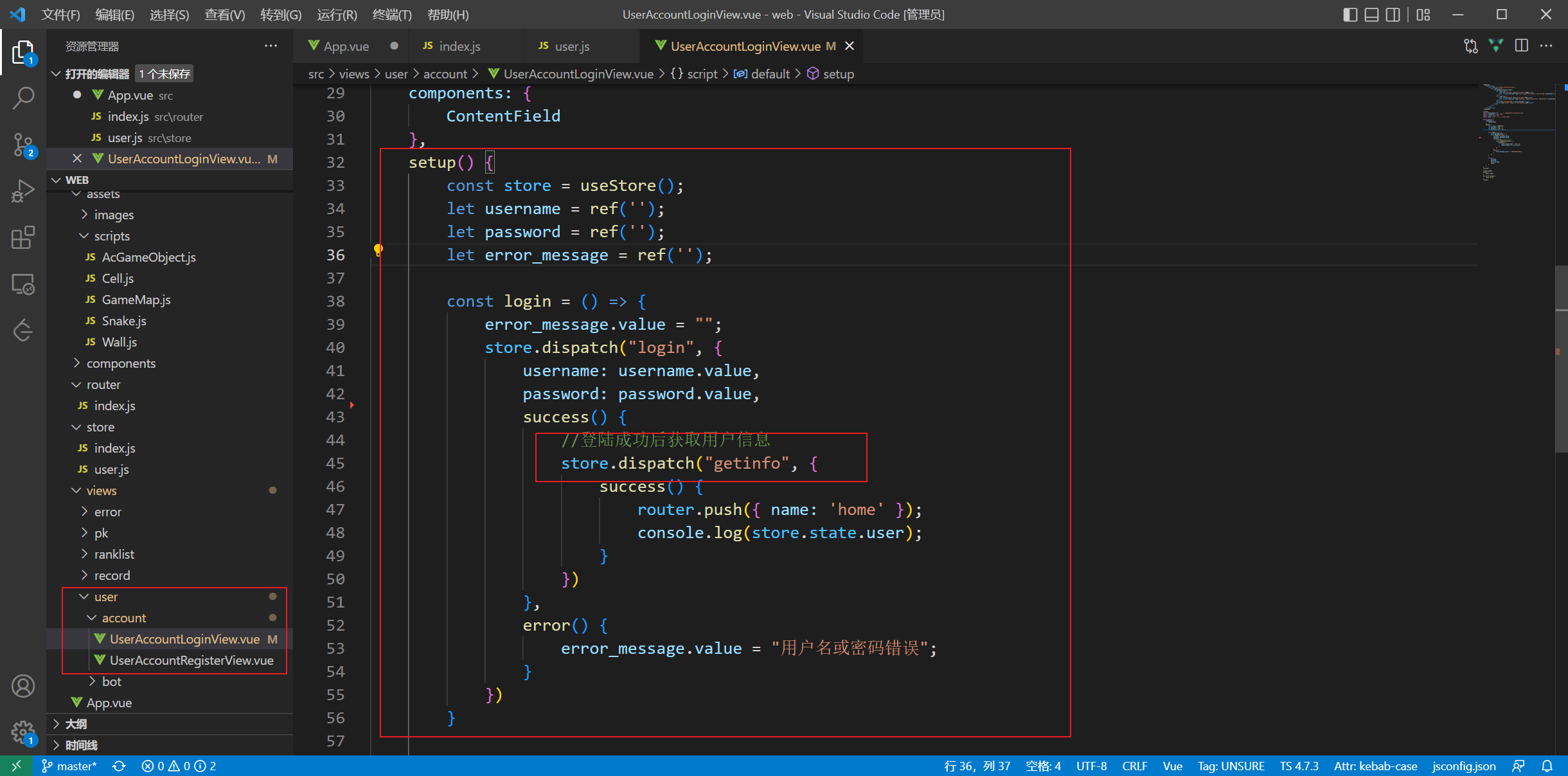

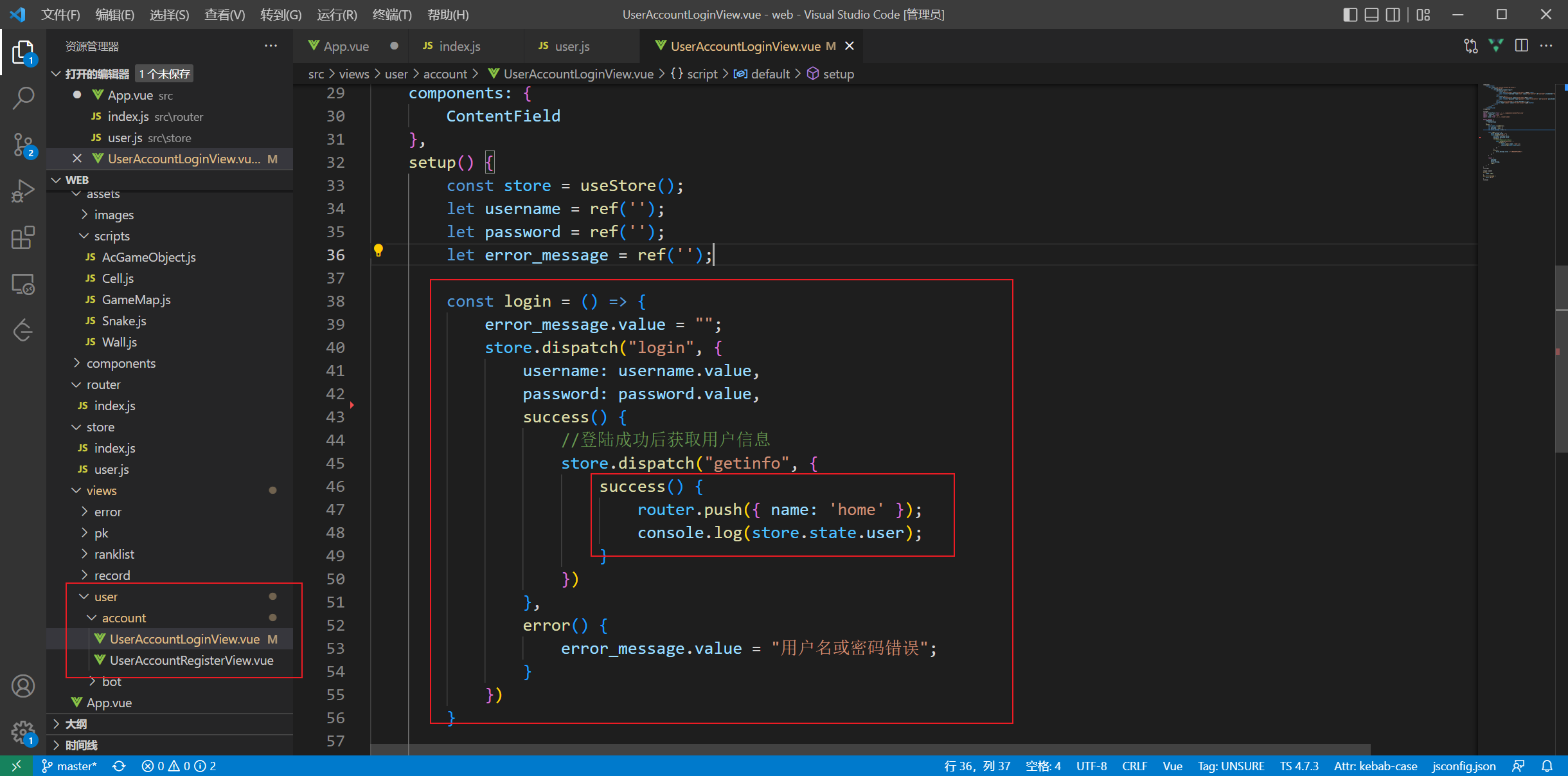

在 UserAccountLoginView.vue 中实现

 登陆成功后获取用户的信息

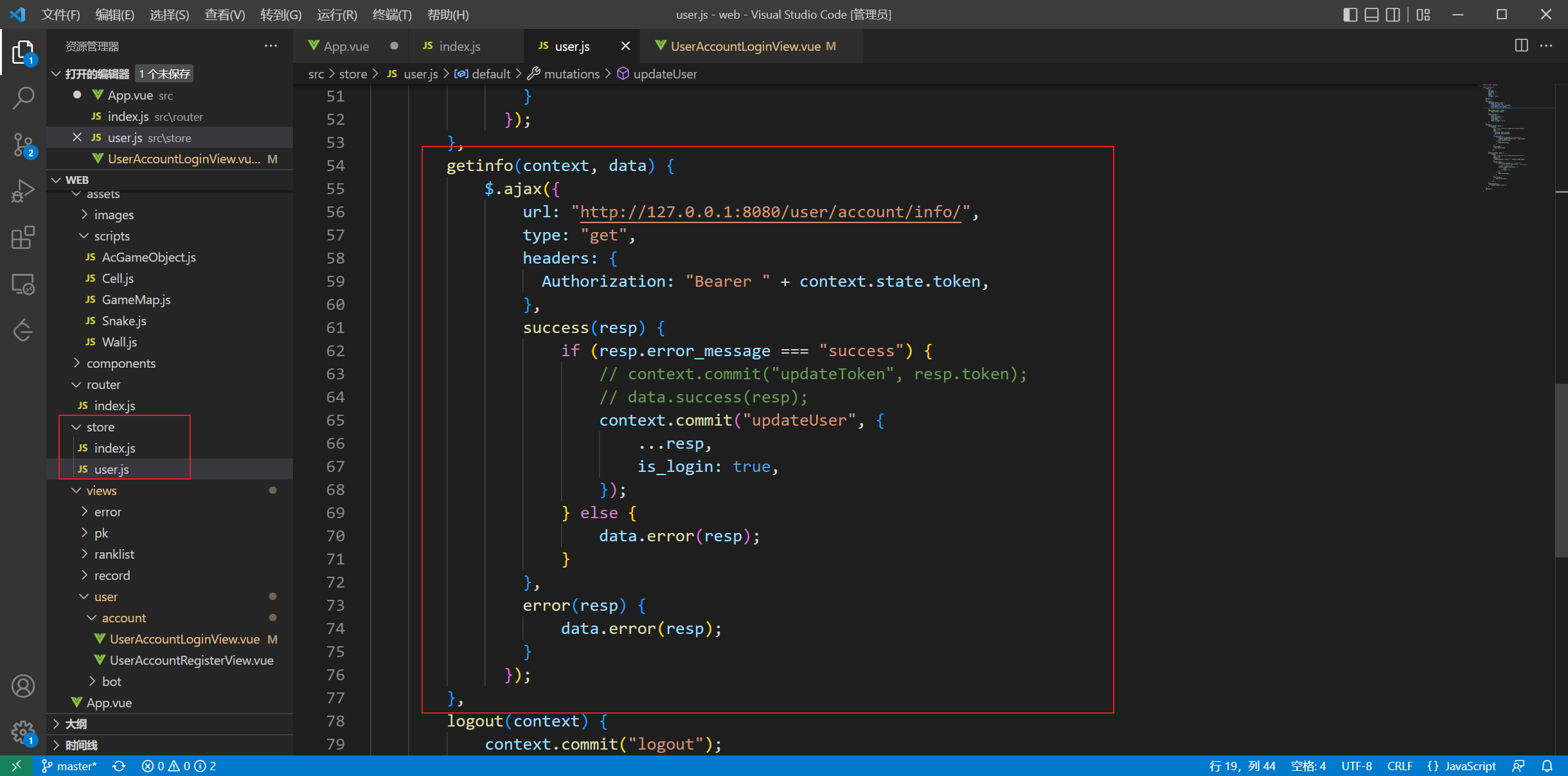

在 user.js 中添加辅助函数

import $ from 'jquery'export default {state: {id: "",username: "",password: "",photo: "",token: "",is_login: false,},getters: {},mutations: {updateUser(state, user) {state.id = user.id;state.username = user.username;state.photo = user.photo;state.is_login = user.is_login;},updateToken(state, token) {state.token = token;},},actions: {login(context, data) {$.ajax({url: "http://127.0.0.1:8080/user/account/token/",type: "post",data: {username: data.username,password: data.password,},success(resp) {if (resp.error_message === "success") {context.commit("updateToken", resp.token);data.success(resp);} else {data.error(resp);}},error(resp) {data.error(resp); }});},getinfo(context, data) {$.ajax({url: "http://127.0.0.1:8080/user/account/info/",type: "get",headers: {Authorization: "Bearer " + context.state.token,},//成功就更新用户。success(resp) {if (resp.error_message === "success") {context.commit("updateUser", {...resp,is_login: true,});data.success(resp);} else {data.error(resp);}},error(resp) {data.error(resp);}});},logout(context) {context.commit("logout");}},modules: {}
}

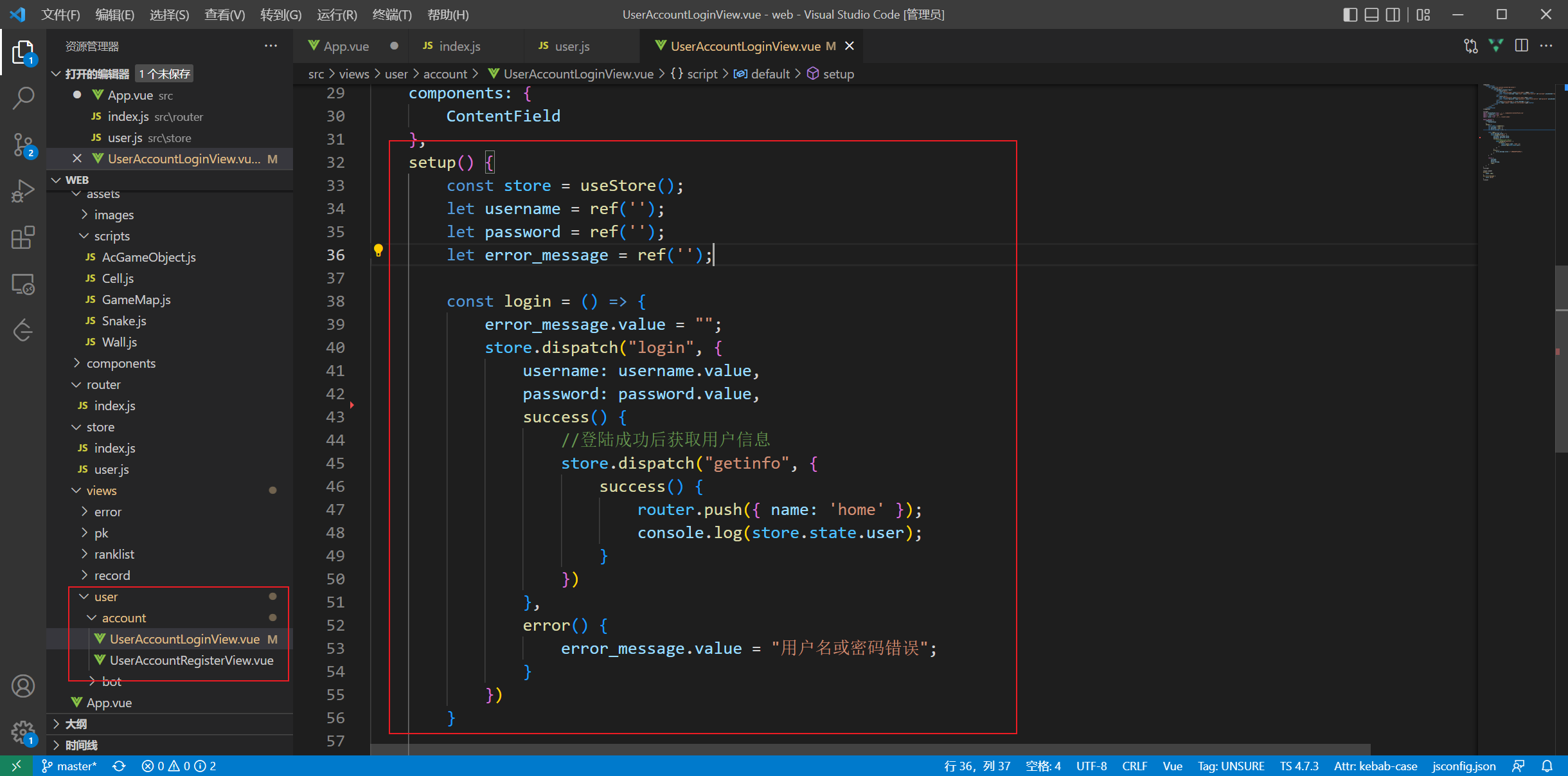

 修改 UserAccountLoginView.vue

 把结果返回到右上角个人信息 – 修改导航栏

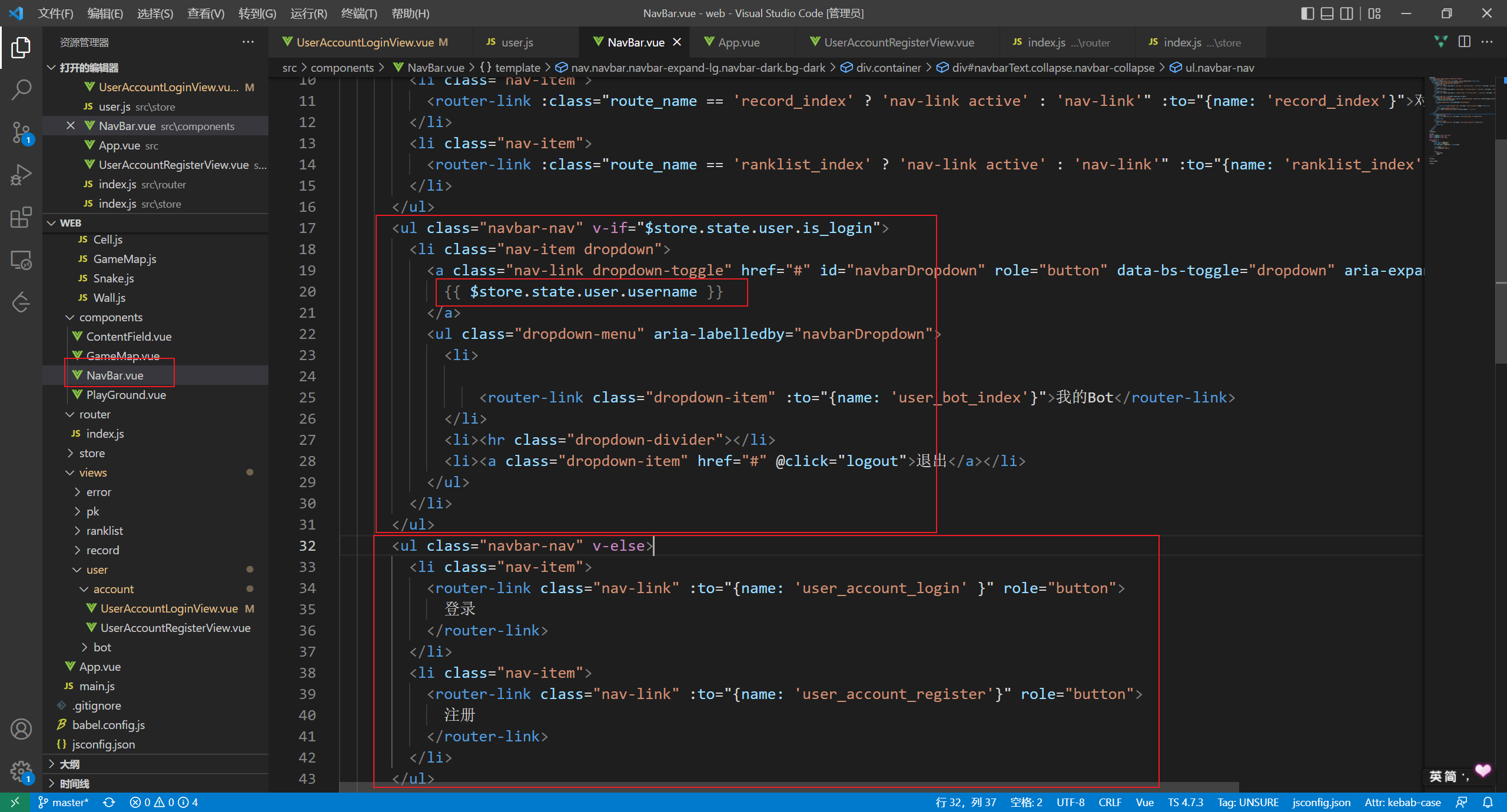

修改 NavBar.vue：

 退出登陆

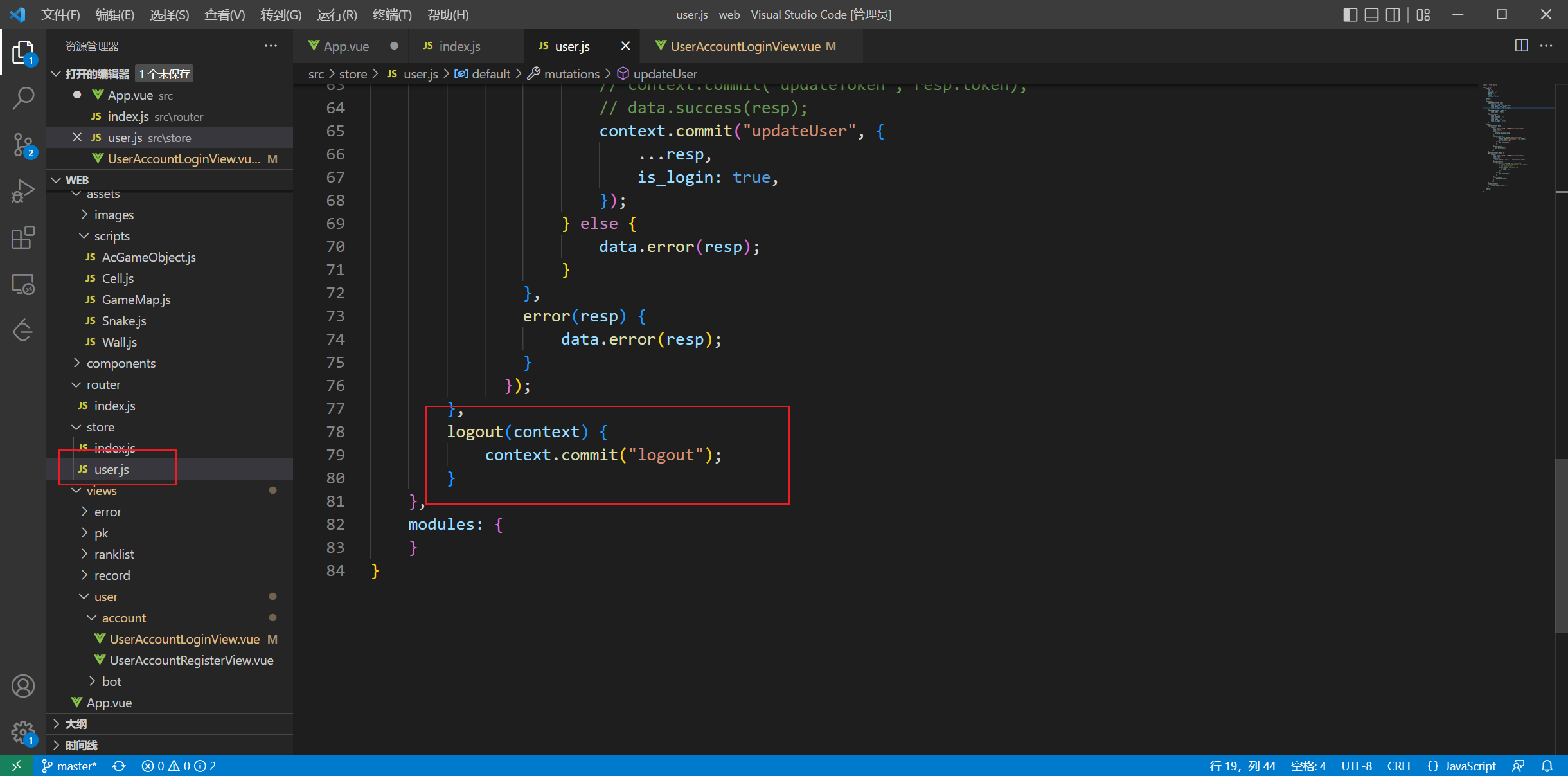

user.js 添加辅助函数：

mutations: {logout(state) {state.id = "";state.username = "";state.photo = "";state.token = "";state.is_login = false;}
},
actions: {logout(context) {context.commit("logout");}
},

 在 navabar.vue 添加组件：

退出

 大功告成，记得git 维护~
